Single engine application (Command Link Multifunction Gauge)
A. Power port
B. Bus port
C. Device port
- Attach the waterproof cap to the open terminal
Color code
B : Black
G : Green
P : Pink
R : Red
Y : Yellow

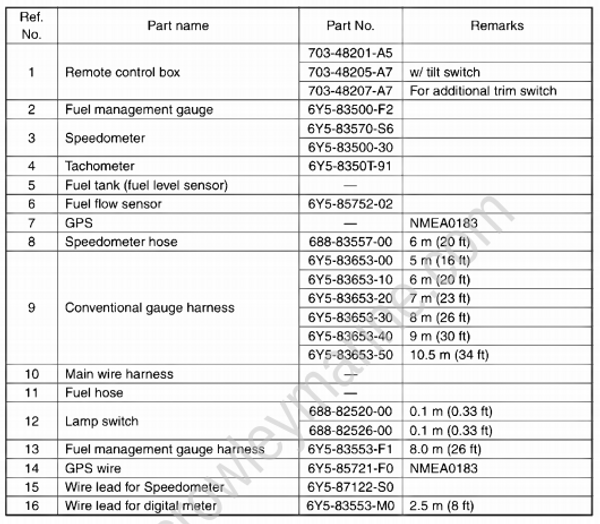

Single engine application (conventional gauge)
- When a GPS (NMEA0183) is used, a speedometer hose is not required.
Color code
B Black
G Green
Gy Gray
L Blue
Or Orange
P Pink
Pu Purple
R Red
W White
Y Yellow
G/R Green/Red
G/W GreenA/Vhite
O/B Orange/Black
P/B Pink/Black
P/W Pink/White
Pu/W Purple/White
W/R : White/Red
