Single engine application (6Y8 Multifunction Meters)
| Ref. No. | Part name | Part No. | Remarks |
|---|---|---|---|
| 1 | Engine ECM | — | |
| 2 | Speed sensor kit | 60V-8A4L1-13 | |
| 3 | Trim sensor | — | |
| 4 | Main wire harness | — | |
| 5 | Remote control box | 703-48201-A6 | |
| 5 | Remote control box | 703-48205-A7 | w/ tilt switch |
| 5 | Remote control box | 703-48207-1B-10 | For additional trim switch |
| 6 | Power supply wire | 6Y8-83553-01-00 | w/10 A fuse, 2.4 m (8 ft) |
| 7 | Pigtail bus wire | 6Y8-82521-01-00 | 0.3 m (1 ft) |
| 7 | Pigtail bus wire | 6Y8-82521-11-00 | 0.6 m (2 ft) |
| 7 | Pigtail bus wire | 6Y8-82521-21-00 | 0.9 m (3 ft) |
| 7 | Pigtail bus wire | 6Y8-82521-31-00 | 1.8 m (6 ft) |
| 7 | Pigtail bus wire | 6Y8-82521-41-00 | 2.7 m (9 ft) |
| 7 | Pigtail bus wire | 6Y8-82521-51-00 | 3.6 m (12 ft) |
| 8 | Single hub | 6Y8-81920-11-00 | w/ resistor, 4-6P, White |
| 9 | Main bus wire | 6Y8-82553-01-00 | 0.3 m (1 ft) |
| 9 | Main bus wire | 6Y8-82553-50-00 | 3.0 m (10 ft) |
| 9 | Main bus wire | 6Y8-82553-11-00 | 4.6 m (15 ft) |
| 9 | Main bus wire | 6Y8-82553-21-00 | 6.1 m (20 ft) |
| 9 | Main bus wire | 6Y8-82553-31-00 | 7.6 m (25 ft) |
| 9 | Main bus wire | 6Y8-82553-41-00 | 9.1 m (30 ft) |
| 10 | Multi-hub | 6Y8-81920-01-00 | w/ resistor cap, Black |
| 11 | Resistor cap | 6Y8-85371-01-00 | 6P, Gray |
| 12 | Tachometer | 6Y8-8350T-01-00 | |
| 13 | Speedometer | 6Y8-8350S-01-00 | |
| 14 | Immobilizer (Y-COP) | 6Y8-86254-02 | |
| 14 | Immobilizer (Y-COP) | 6Y8-86254-22 |
a. Power port
b. Bus port
c. Device port
*1. Attach the waterproof cap to the open terminal.
Single engine application (conventional gauge)
| Ref. No. | Part name | Part No. | Remarks |
|---|---|---|---|
| 1 | Remote control box | 703-48201-A6 | |
| 1 | Remote control box | 703-48205-A7 | w/ tilt switch |
| 1 | Remote control box | 703-48207-1B-10 | For additional trim switch |
| 2 | Fuel management gauge | 6Y5-83500-F2-00 | |
| 3 | Speedometer | 6Y5-83570-S6-00 | |
| 3 | Speedometer | 6Y5-83500-30 | |
| 4 | Tachometer | 6Y5-8350T-91 | |
| 5 | Fuel tank (fuel level sensor) | — | |
| 6 | Fuel flow sensor | 6Y5-85752-02-00 | |
| 7 | GPS | — | NMEA0183 |
| 8 | Speedometer hose | 688-83557-00-00 | 6 m (20 ft) |
| 9 | Conventional gauge harness | 6Y5-83653-00-00 | 5 m (16 ft) |
| 9 | Conventional gauge harness | 6Y5-83653-10-00 | 6 m (20 ft) |
| 9 | Conventional gauge harness | 6Y5-83653-20-00 | 7 m (23 ft) |
| 9 | Conventional gauge harness | 6Y5-83653-30-00 | 8 m (26 ft) |
| 9 | Conventional gauge harness | 6Y5-83653-40-00 | 9 m (30 ft) |
| 9 | Conventional gauge harness | 6Y5-83653-50-00 | 10.5 m (34 ft) |
| 10 | Main wire harness | — | |
| 11 | Fuel hose | — | |
| 12 | Lamp switch | 688-82520-00-00 | 0.1 m (0.33 ft) |
| 12 | Lamp switch | 688-82526-00-00 | 0.1 m (0.33 ft) |
| 13 | Fuel management gauge harness | 6Y5-83553-F1-00 | 8.0 m (26 ft) |
| 14 | GPS wire | 6Y5-85721-F0-00 | NMEA0183 |
| 15 | Wire lead for speedometer | 6Y5-87122-S0-00 | |
| 16 | Wire lead for digital meter | 6Y5-83553-M0-00 | 2.5 m (8 ft) |
*1. When a GPS (NMEA0183) is used, a speedometer hose is not required.
Twin engine application (6Y8 Multifunction Meters)
| Ref. No. | Part name | Part No. | Remarks |
|---|---|---|---|
| 1 | Engine ECM | — | |
| 2 | Speed sensor kit | 60V-8A4L1-13-00 | |
| 3 | Water pressure sensor kit | 60V-8A4L0-14 | |
| 4 | Trim sensor | — | |
| 5 | Main wire harness | 688-8258A-50-00 | 5 m (16 ft) |
| 5 | Main wire harness | 688-8258A-60-00 | 6 m (20 ft) |
| 5 | Main wire harness | 688-8258A-70-00 | 7 m (23 ft) |
| 5 | Main wire harness | 6K1-8258A-40-00 | 8 m (26 ft) |
| 5 | Main wire harness | 61B-8258A-01-00 | 9.5 m (31 ft) |
| 6 | Remote control box | 704-48207-P1-00 | |
| 7 | Main switch | 6Y8-82570-03-00 | |
| 8 | Multi-hub | 6Y8-81920-01-00 | w/ resistor cap, Black |
| 9 | Power supply wire | 6Y8-83553-01-00 | w/10 A fuse, 2.4 m (8 ft) |
| 10 | Resistor cap | 6Y8-85371-01-00 | 6P, Gray |
| 11 | Pigtail bus wire | 6Y8-82521-01-00 | 0.3 m (1 ft) |
| 11 | Pigtail bus wire | 6Y8-82521-11-00 | 0.6 m (2 ft) |
| 11 | Pigtail bus wire | 6Y8-82521-21-00 | 0.9 m (3 ft) |
| 11 | Pigtail bus wire | 6Y8-82521-31-00 | 1.8 m (6 ft) |
| 11 | Pigtail bus wire | 6Y8-82521-41-00 | 2.7 m (9 ft) |
| 11 | Pigtail bus wire | 6Y8-82521-51-00 | 3.6 m (12 ft) |
| 12 | Main bus wire | 6Y8-82553-01-00 | 0.3 m (1 ft) |
| 12 | Main bus wire | 6Y8-82553-50-00 | 3.0 m (10 ft) |
| 12 | Main bus wire | 6Y8-82553-11-00 | 4.6 m (15 ft) |
| 12 | Main bus wire | 6Y8-82553-21-00 | 6.1 m (20 ft) |
| 12 | Main bus wire | 6Y8-82553-31-00 | 7.6 m (25 ft) |
| 12 | Main bus wire | 6Y8-82553-41-00 | 9.1 m (30 ft) |
| 13 | Waterproof cap | 6Y8-82582-01-00 | 2P, Red |
| 14 | Waterproof cap | 6Y8-82582-11-00 | 4P, White |
| 15 | Tachometer | 6Y8-8350T-01-00 | |
| 16 | Fuel management gauge | 6Y8-8350F-01-00 | |
| 17 | Speedometer | 6Y8-8350S-01-00 | |
| 18 | Fuel tank (fuel level sensor) | — | |
| 19 | GPS | — | NMEA0183 |
| 20 | Transom multi-sensor | 6Y8-83688-01-00 | |
| 21 | Thru-hull multi-sensor 2 | 6Y8-83688-11-00 | Plastic body |
| 21 | Thru-hull multi-sensor 2 | 6Y8-83688-20-00 | Bronze body |
| 22 | Immobilizer (Y-COP) | 6Y8-86254-02 | |
| 22 | Immobilizer (Y-COP) | 6Y8-86254-22 | |
| 23 | Immobilizer power distribution wire 1 | 6H5-81315-00 | |
| 24 | Fuel tank/GPS wire | 6Y8-8356N-01 | NMEA0183 |
a. Power port
b. Bus port
c. Device port
A. PORT
B. STBD

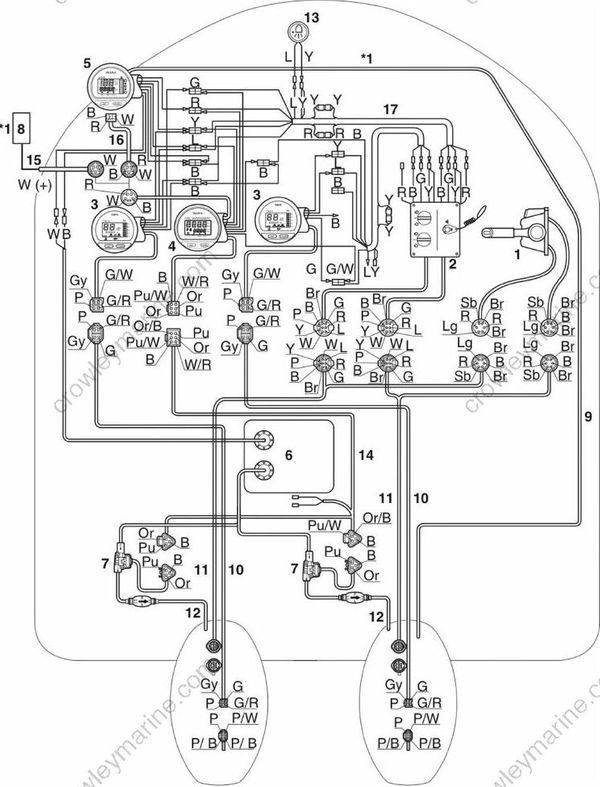

Twin engine application (conventional gauge)
| Ref. No. | Part name | Part No. | Remarks |
|---|---|---|---|
| 1 | Remote control box | 704-48207-P1-00 | |
| 2 | Main switch | 61B-82570-04-00 | |
| 3 | Tachometer | 6Y5-8350T-91 | |
| 4 | Fuel management gauge | 6Y5-83500-F2-00 | |
| 5 | Speedometer | 6Y5-83570-S6-00 | |
| 5 | Speedometer | 6Y5-83500-30 | |
| 6 | Fuel tank (fuel level sensor) | — | |
| 7 | Fuel flow sensor | 6Y5-85752-02-00 | |
| 8 | GPS | — | NMEA0183 |
| 9 | Speedometer hose | 688-83557-00-00 | 6 m (20 ft) |
| 10 | Conventional gauge harness | 6Y5-83653-00-00 | 5 m (16 ft) |
| 10 | Conventional gauge harness | 6Y5-83653-10-00 | 6 m (20 ft) |
| 10 | Conventional gauge harness | 6Y5-83653-20-00 | 7 m (23 ft) |
| 10 | Conventional gauge harness | 6Y5-83653-30-00 | 8 m (26 ft) |
| 10 | Conventional gauge harness | 6Y5-83653-40-00 | 9 m (30 ft) |
| 10 | Conventional gauge harness | 6Y5-83653-50-00 | 10.5 m (34 ft) |
| 11 | Main wire harness | 688-8258A-50-00 | 5 m (16 ft) |
| 11 | Main wire harness | 688-8258A-60-00 | 6 m (20 ft) |
| 11 | Main wire harness | 688-8258A-70-00 | 7 m (23 ft) |
| 11 | Main wire harness | 6K1-8258A-40-00 | 8 m (26 ft) |
| 11 | Main wire harness | 61B-8258A-01-00 | 9.5 m (31 ft) |
| 12 | Fuel hose | — | |
| 13 | Lamp switch | 688-82520-00-00 | 0.1 m (0.33 ft) |
| 13 | Lamp switch | 688-82526-00-00 | 0.1 m (0.33 ft) |
| 14 | Fuel management gauge harness | 6Y5-83553-F1 | 8.0 m (26 ft) |
| 15 | GPS wire | 6Y5-85721-F0 | NMEA0183 |
| 16 | Wire lead for speedometer | 6Y5-87122-S0 | |
| 17 | Wire lead for digital meter | 6Y5-83553-N0 | 2.5 m (8 ft) |
*1. When a GPS (NMEA0183) is used, a speedometer hose is not required.
