Remote Control Adapter Kit P/N 435978

Manufacturer BRP Marine
Engine Type Outboard
Repair Time 30 to 60 mins
Repair Difficulty Easy
Sections 5



These installation instructions contain information that can help prevent personal injury and damage to equipment. Understand the following symbols before proceeding:

Alerts you to the possibility of danger and identifies information that will help prevent injuries.

Identifies information that will help prevent damage to machinery.

Appears next to information that controls correct assembly and operation of the product.


The assembly procedures outlined in this sheet should be performed by a skilled technician. If you have questions, see your DEALER. Save these instructions in your owner's kit. This sheet contains information important to the future use and maintenance of your engine.


Give this sheet to the owner. Advise the owner of any special operation or maintenance information contained in the instructions.


These instructions are for 40RP, 40RW, 45 and 55 rope start models. Install this kit first, then install the Emergency Ignition Stop Switch Kit following instructions provided with kit.

When replacement parts are required, use genuine Evinrude/Johnson parts or parts with equivalent characteristics including type, strength and material. Failure to do so may result in product malfunction and possible injury to the operator or passengers.


Ref. Name of Part Qty.
1 Shift lever & bushing 1
2 Shift lever link 1
3 Link pin 2
4 Link washer 2
5 Cotter pin 3
6 Shift lever shoulder screw 1
7 1/2 in. Wave washer 1
8 Shoulder screw bushing 1
9 #10 Flat washer 1
10 10-32 Locknut 2
11 3/8 in. Flat washer 1
12 1/4-20 x 1 in. Screw 2
13 1/4 in. Flat washer 1
14 Locknut spacer 1
15 Throttle lever 1
16 Throttle lever bracket 1
17 1/4-20 x 7/8 in. Screw, upper 1
18 1/4-20 x 1 1/4 in. Screw, lower 1
19 Bracket spacer 1
20 1/4-20 Locknut 2
21 Throttle lever bushing 1
22 1/4-20 x 1 13/16 in. Screw 1
23 Anchor Block 1
24 Control cable retainer 1
25 1/4-20 x 1/2 in. Screw, washer head 1

Remove Steering Handle

Remove cover mounting screws (A) and lay cover aside.

Remove and save stop switch ring terminal mounting screw (B) and star washer.

Separate Amphenol connectors. push black wire socket terminal out of plug.

Remove and discard screws from the throttle cable lever (C) and anchor (D).

Remove and discard pivot (E), jam nut (F), anchor (G) from throttle cable.

Remove and lay aside throttle cam to allow clearance for cutting manifold. Observe position of washers for reassembly. Remove and discard detent spring and mounting screw (H).

Lay shop towel in lower engine cover to catch aluminum chips. Cut off intake manifold mounting boss flush with throttle cam mounting surface.

Remove and discard shift handle shoulder screw (I) and washers.

Remove and discard steering handle locknuts and mounting screws (J).

Support handle and pull electrical cable and throttle cable through lower engine cover. Remove grommet from cable and reinstall in engine cover. Discard handle assembly. Loosen steering friction adjustment screw (K) to allow motor to steer freely.

INTERLOCK MODELS: Remove and discard starter lockout cable anchor screw from lower engine cove bracket. Disengage cable from cam. Observe position of square plates for reassembly.

Raise shift rod to a vertical position. Remove and discard cotter pin, washers & shift rod.

Remove old components

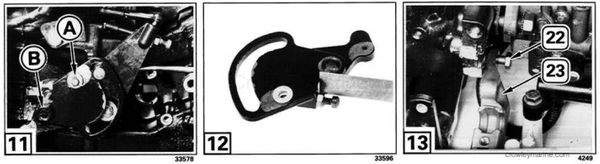

Remove and discard throttle lever cotter pin (A). Save washers and bushing. Remove and save throttle lever shoulder screw (B) and washers. Observe position of washers for reassembly.

Measure and record wide open throttle stop screw position in throttle lever for assembly in new lever. Remove bumper, jam nut, and throttle stop screw. Discard throttle lever.

Install kit components

Apply Triple-Guard® 0508298 grease to all shoulder bolts, pins, and bushings.

Loosen carburetor mounting nuts. pull carburetors forward to clear lower anchor block mounting screw.

Position anchor block (23) on manifold. Install screw (22) in lower mounting hole. Hold screw in position with a flat blade screwdriver and turn screw with an open end wrench.

Rotate anchor block in position and install screw (12). Tighten screws securely and retighten carburetor mounting nuts.

Position shift lever link (2) on shift lever & bushing (1) with hole (A) FORWARD as shown for lockout cable. Install pin (3), washer (4) and cotter pin (5) in bushing.

[15] [16]
Install bushing (8), shoulder bolt (6), wave washer (7), and flat washer (11). Secure shift lever to powerhead with shoulder bolt. Tighten shoulder bolt securely.

Align link with shift lever. Install pin (3) thru link (2), bushing (in lever), and washer (4). Secure with cotter pin (5).

Insert lockout cable in hole in link.

Align tabs with lockout cable anchor. Insert screw (12), washer (13), and spacer (14).

Install screw into lower motor cover support. Tighten to a torque of 60-80 in. lbs. (7-9 Nm).

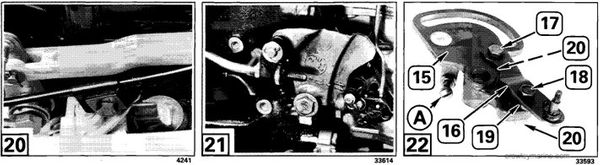

Reinstall throttle cam pivot screw with washers and bushing in correction location. Tighten pivot screw to a torque of 60-80 in. lbs. (7-9 Nm).

Assemble wide open throttle stop screw (A), jam nut and bumper onto new throttle lever (15) at predetermined dimension. Install throttle lever bracket (16) onto throttle lever using screw (17), screw (18), spacer (19) & locknuts (20).

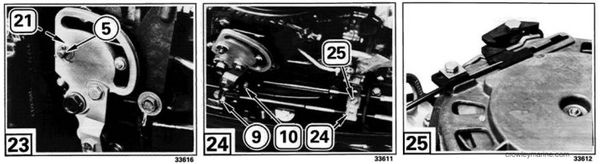

Insert bushing (21) in throttle lever. Insert throttle link through throttle lever with original washers on each side. Secure throttle link with cotter pin (5). Reinstall old shoulder screw, flat washers, and throttle lever. Tighten screw securely. Make sure throttle lever operates smoothly and does not bind.

Install Emergency Ignition Stop Switch Kit following the instructions provided with kit.

Test and adjust

Check spark/throttle synchronization, wide open throttle position, and spark advance. For procedures. refer to Service Manual.


Apply Triple-Guard grease to throttle and shift cables. Install control cables onto shift and throttle levers and secure with washers (9) and locknuts (10) provided. Do not substitute. Adjust control cables. For procedure refer to Service Manual.

Secure control cables with retainer (24) and mounting screw (25). Protrusions must face DOWN. Tighten mounting screw to a torque of 60-80 in. lbs. (7-9 Nm).

Connect wires for the emergency ignition stop switch following the instructions provided in kit. After installation is completed, check for interference between wires and engine linkage parts. Undetected interference may result in electrical wires being damaged. Install electrical bracket cover.


INTERLOCK MODELS: Check starter lockout adjustment. Make sure starter does not operate when engine is in gear.** For procedure, refer to Service Manual.
