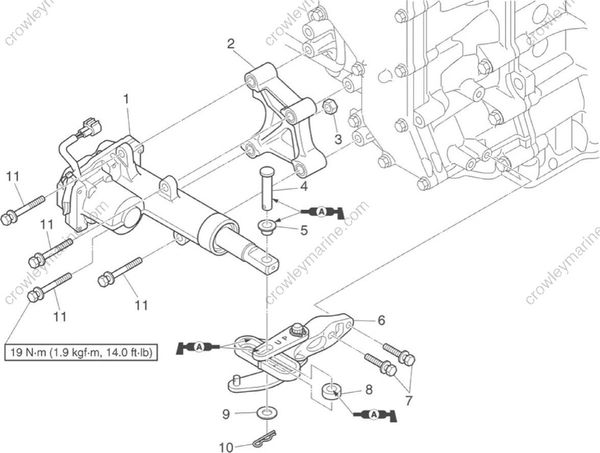

Shift actuator
| No. | Part name | Q'ty | Remarks |
|---|---|---|---|
| 1 | Shift actuator | 1 | |
| 2 | Bracket | 1 | |
| 3 | Nut | 1 | |
| 4 | Pin | 1 | |
| 5 | Bushing | 1 | |
| 6 | Shift link assembly | 1 | |
| 7 | Bolt | 2 | M6 x 25 mm |
| 8 | Bushing | 1 | |
| 9 | Washer | 1 | |
| 10 | Clip | 1 | |
| 11 | Shift actuator bolt | 4 | M6 x 55 mm |

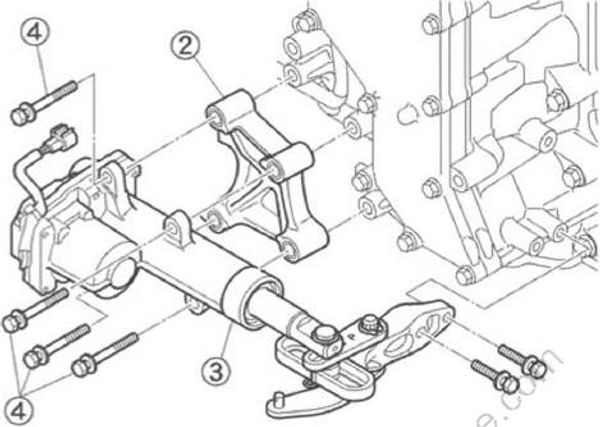

Removing the shift actuator assembly
- Remove the shift actuator (1).

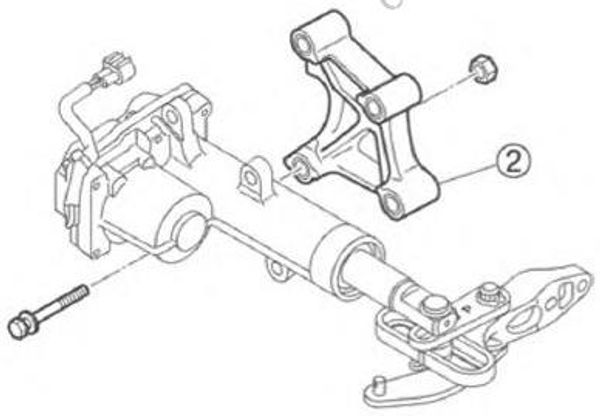

- Remove the bracket (2)

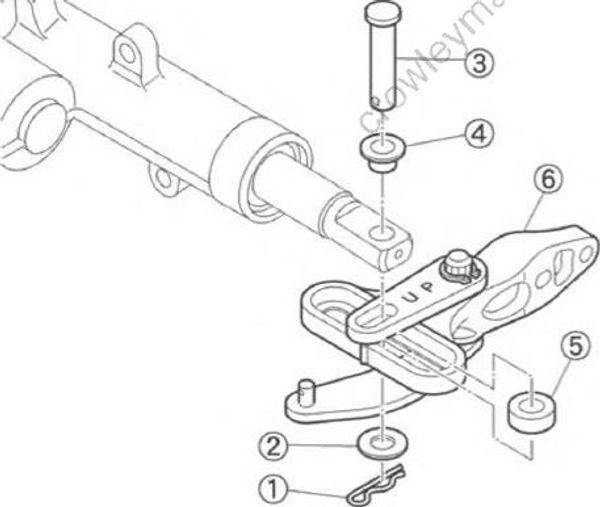

Disassembling the shift actuator assembly
- Remove the clip (1), and then remove the washer (2), pin (3), bushing (4) bushing (5), and shift link assembly (6).
Assembling the shift actuator assembly
- Install the shift link assembly (1), bushing (2), bushing (3), pin (4), washer (5), and clip (6).
Installing the shift actuator assembly
Installing the shift actuator assembly

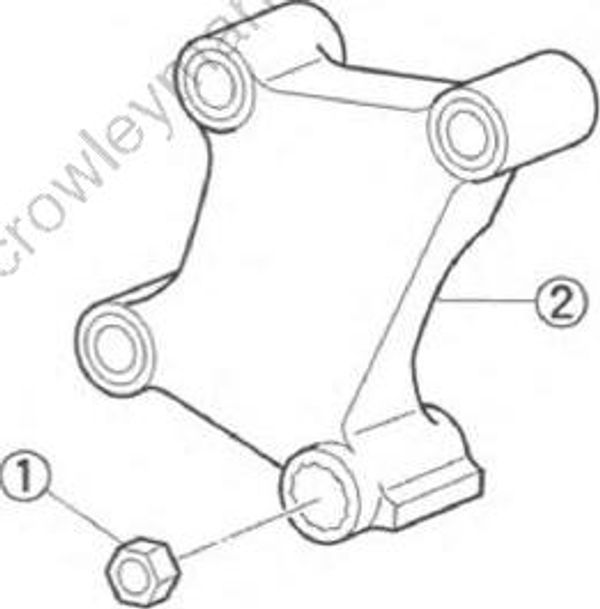

- Install the nut (1) to the bracket (2).

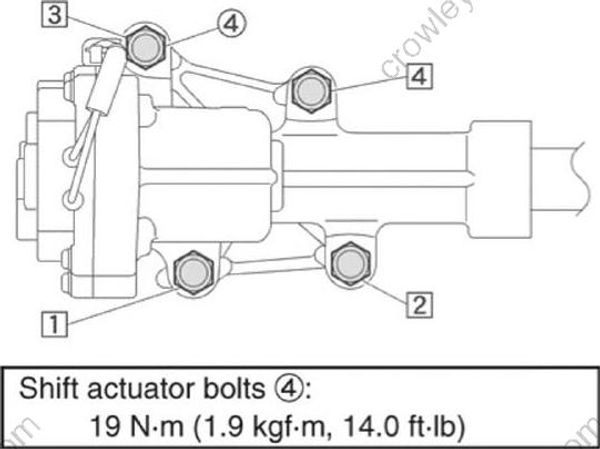

- Install the bracket (2) and shift actuator (3), and then tighten the shift actuator bolts (4) to the specified torque in the order (1), (2), and so on.
