Mechanical Cables
All Evinrude outboards equipped with tilt tubes are compatible with mechanical steering systems that meet ABYC Standard P-17. Single-cable mechanical steering systems can be used on single or dual-outboard installations if an ABYC-approved
steering link is used.

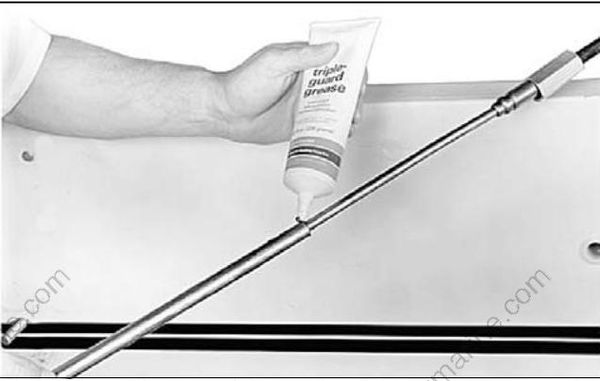

Extend the steering cable and lubricate the inner core before installation.
ABYC-approved mechanical steering cable.
IMPORTANT: Install steering cable through tilt tube before mounting outboard on transom. Tighten nut securely.
Drag Links
Use the correct drag link to allow full steering travel:
| Model | Drag Link |
|---|---|
| 9.8 HP | P/N 5040355 |
| 15 HP | P/N 5040800 |
Install steering cable wiper nut on tilt tube. Connect the drag link to the steering bracket with the provided hardware as shown. Tighten drag link
nuts to 20 ft. lbs. (27 N·m).

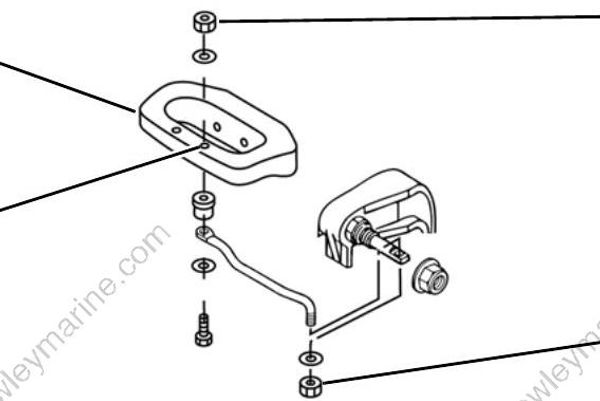

9.8 HP Models
- Steering bracket
- Drag link connection
- Drag link nut

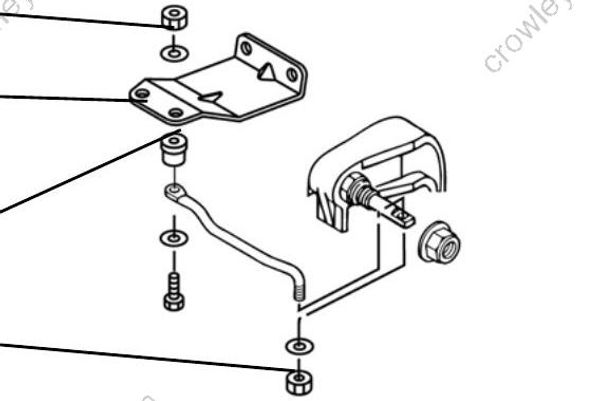

15 HP Models
- Steering bracket
- Drag link connection
- Drag link nuts
