OE 2012 Evinrude Portable Outboards Installation & Predelivery Guide (P-N 5008855) - Technical Specifications Common Practices- All Models [Outboard Rigging]
5008855
BRP Marine

Step 1: Control Cable Identification

IMPORTANT: Identify control cable function before rigging outboard.

Identify each control cable:

  • Put the control handle into NEUTRAL position. The throttle cable casing guide will extend completely and the shift cable casing guide will go to the midpoint of its travel.

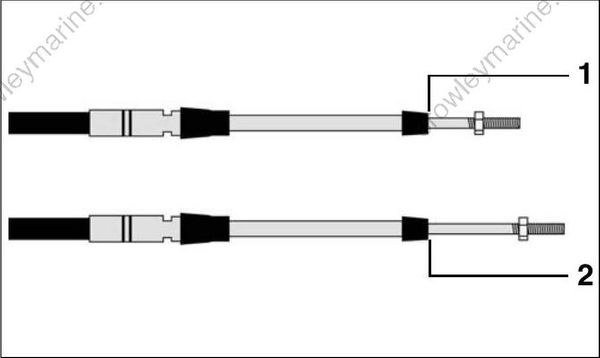

  1. Shift cable casing guide extended to midpoint
  2. Throttle cable casing guide extended
