Preparation for Installation
Read all of the installation instructions and review the contents of this kit before starting work.
[1]
Contents of Kit - Quantity Required
You will need the parts listed in the Qty. column for the model you are working on. Use the full-size photograph to select the parts for your model. Discard the rest.
[2a] [2b]

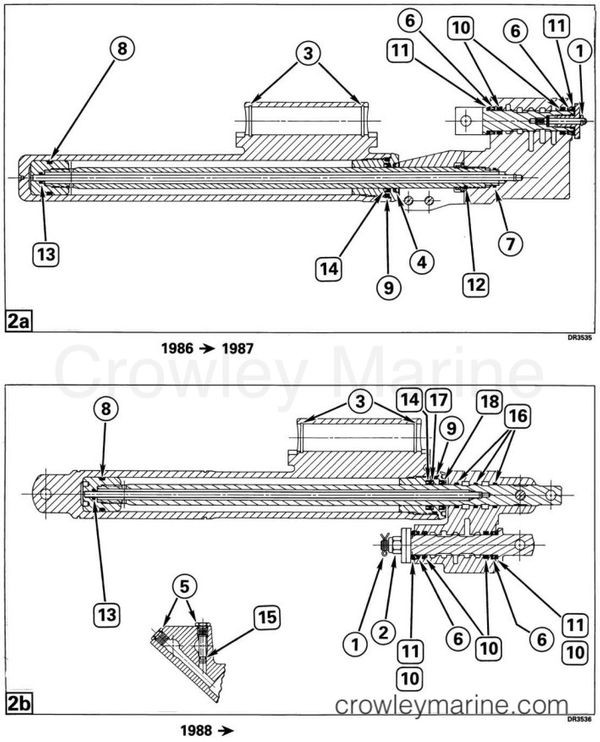

Install the parts at the locations shown. Refer to the Service Manual, Power Steering Section - Cylinder and Valve Housing Servicing for the service procedures.
[1]
Contents of Kit
Parts and Quantity Required for:
1991 and Newer Models
| Ref. | P/N | Name of Part | Qty |
|---|---|---|---|
| 1 | 300723 | Cotter Pin | 1 |
| 2 | 307160 | Locknut | 1 |
| 3 | 314491 | O-ring ( 0.989 x 0.070 in) | 2 |
| 4 | NOT USED | ||
| 5 | 911522 | O-ring (0.301 x 0.064 in.) | 4 |
| 6 | 912081 | Seal | 2 |
| 7 | 912346 | O-ring (0.543 x 0.075 in.) | 1 |
| 8 | 912347 | O-ring (1.012 x 0.138 in. ) | 1 |
| 9 | 912348 | O-ring ( 1.169 x 0.138 in.) | 1 |
| 10 | 912357 | O-ring ( 0.734 x 0.139 in.) | 4 |
| 11 | NOT USED | ||
| 12 | NOT USED | ||
| 13 | 912371 | O-ring ( 0.239 x 0.070 in.) | 1 |
| 14 | 912450 | Seal (soft) | 1 |
| 15 | 913326 | O-ring (0.145 x 0.070 in.) | 2 |
| 16 | 913327 | O-ring (0.734 x 0.103 in.) | 3 |
| 17 | 913367 | Backup Ring | 1 |
| 18 | 913368 | Seal (soft w/double lip) | 1 |
1988 Thru 1990 Models
| Ref. | P/N | Name of Part | Qty |
|---|---|---|---|
| 1 | 300723 | Cotter Pin | 1 |
| 2 | 307160 | Locknut | 1 |
| 3 | 314491 | O-ring ( 0.989 x 0.070 in) | 2 |
| 4 | NOT USED | ||
| 5 | 911522 | O-ring (0.301 x 0.064 in.) | 4 |
| 6 | 912081 | Seal | 2 |
| 7 | 912346 | O-ring (0.543 x 0.075 in.) | 1 |
| 8 | 912347 | O-ring (1.012 x 0.138 in. ) | 1 |
| 9 | 912348 | O-ring ( 1.169 x 0.138 in.) | 1 |
| 10 | 912357 | O-ring ( 0.734 x 0.139 in.) | 4 |
| 11 | 912358 | ||
| 12 | NOT USED | ||
| 13 | 912371 | O-ring ( 0.239 x 0.070 in.) | 1 |
| 14 | 912450 | Seal (soft) | 1 |
| 15 | 913326 | O-ring (0.145 x 0.070 in.) | 2 |
| 16 | 913327 | O-ring (0.734 x 0.103 in.) | 3 |
| 17 | 913367 | Backup Ring | 1 |
| 18 | 913368 | Seal (soft w/double lip) | 1 |
For dual (both power steering) '88 thru '90 motors with boat hydraulic steering; use four *(10)** O-rings and none of the (11).
1986 Thru 1987 Models
| Ref. | P/N | Name of Part | Qty |
|---|---|---|---|
| 1 | 300723 | Cotter Pin | 1 |
| 2 | NOT USED | ||
| 3 | 314491 | O-ring (0.989 x 0.070 in. ) | 2 |
| 4 | 911468 | Seal | 1 |
| 5 | NOT USED | ||
| 6 | 912081 | Seal | 2 |
| 7 | 912346 | O-ring (0.543 x 0.075 in.) | 1 |
| 8 | 912347 | O-ring (1.012 x 0.138 in. ) | 1 |
| 9 | 912348 | O-ring ( 1.169 x 0.138 in.) | 1 |
| 10 | 912357 | O-ring ( 0.734 x 0.139 in.) | 2 |
| 11 | 912358 | O-ring (0.732 x 0.118 in. ) | 2 |
| 12 | 912370 | O-ring (0.622 x 0.075 in.) | 1 |
| 13 | 912371 | O-ring ( 0.239 x 0.070 in.) | 1 |
| 14 | 912450 | Seal (soft) | 1 |
| 15 | NOT USED | ||
| 16 | NOT USED | ||
| 17 | NOT USED | ||
| 18 | NOT USED |
