SPECIAL TOOLS
The use of correct special tools recommended by Yamaha will aid the work and enable accurate assembly and tune-up. Improvisations and use of improper tools can cause damage to the equipment.
SPECIAL TOOLS FOR TUNE-UP
| No. | TOOL NAME | PART NUMBER |
|---|---|---|
| 1 | Compression gauge | YU-33223 |
| 2 | Tachometer | YU-8036 |
| 3 | Digital multimeter | YU-33263 |
| 4 | Timing light | YM-33277 |
| 5 | Ignition coil tester | YU-33261 |
| 6 | Dial gauge set | YU-3097 |
| 7 | Test propeller | YB-1620 |

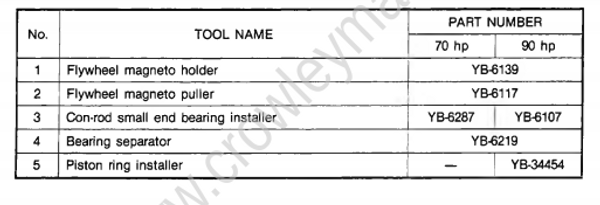

SPECIAL TOOLS FOR ENGINE SERVICE

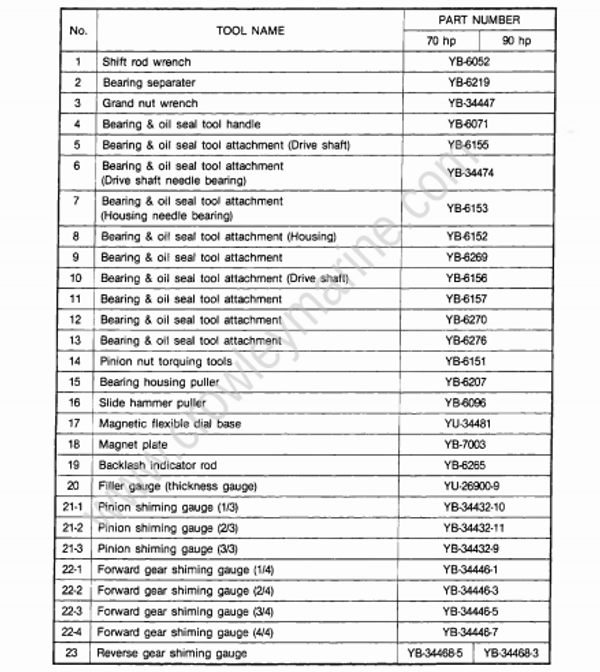

SPECIAL TOOLS FOR LOWER UNIT SERVICE
SPECIAL TOOLS FOR P.T.T. SERVICE
| No. | TOOL NAME | PART NUMBER |
|---|---|---|
| 1 | Cylinder end handle | YB-6175 |
| 2 | Oil pressure gauge | YB-6181 |
| 3 | Seat installer | YB-6188 |
SEALING AGENTS AND LUBRICANTS
| No. | TOOL NAME | PART NUMBER |
|---|---|---|
| 1 | Gasket maker | 907-90740-01-00 |
| 2 | Marine grease | LUB-GREAS-14-00 |
| 3 | Power trim/tilt fluid | LUB-PWRTF-11-00 |
| 4 | Gear case lube (11 oz) | LUB-GEARL-11-00 |
| 5 | Yamalube two cycle outboard oil | ACC-11000-07-01 |
