Periodic Inspections And Adjustments [Maintenance Interval Chart] [2006]

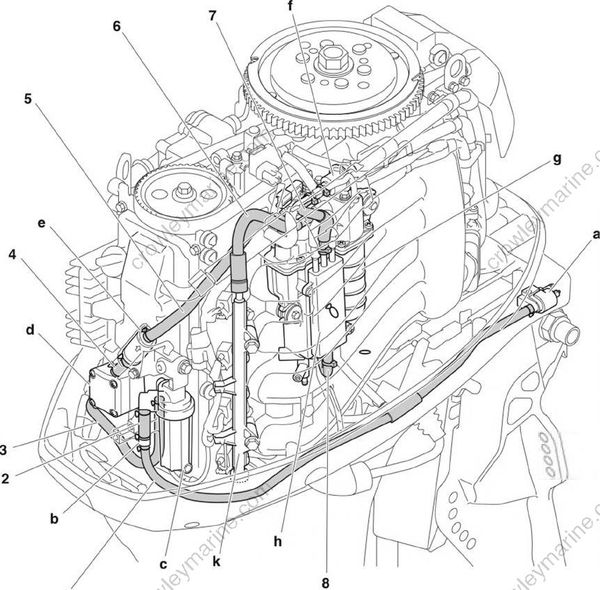

Fuel hose

1. Fuel hose (fuel joint to joint)

2. Fuel hose (joint to fuel filter assembly)

3. Fuel hose (fuel filter assembly to fuel pump)

4. Fuel hose (fuel pump to fuel strainer)

5. Fuel hose (fuel strainer to vapor separator)

6. Fuel hose (vapor separator to fuel rail)

7. Fuel hose (pressure regulator to fuel cooler)

8. Fuel hose (fuel cooler to vapor separator)

a. Fuel joint

b. Joint

c. Fuel filter assembly

d. Fuel pump

e. Fuel strainer

f. Pressure regulator

g. Vapor separator

h. Fuel cooler

k. Fuel rail

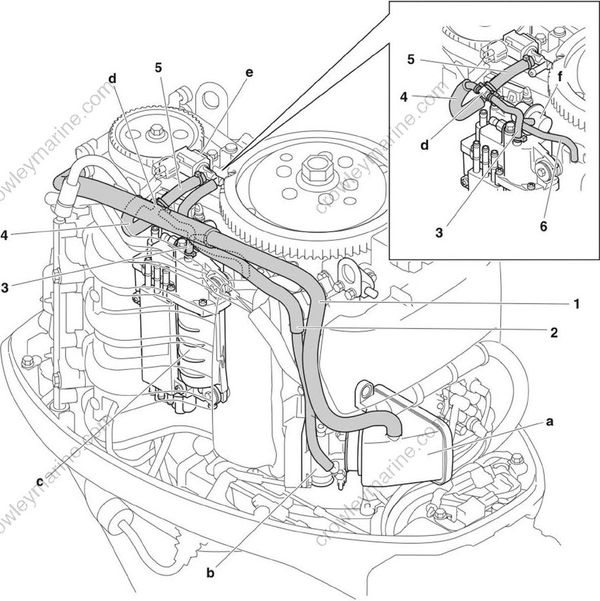

1. Blowby hose (cylinder head cover to intake silencer)

2. Vapor gas hose (vapor shut-off valve to throttle body)

3. Vapor gas hose (vapor separator to joint)

4. Vapor gas hose (vapor separator to joint)

5. Vapor gas hose (joint to vapor shut-off valve)

6. Pressure regulator hose (pressure regulator to intake manifold)

a. Intake silencer

b. Throttle body

c. Vapor separator

d. Joint

e. Vapor shut-off valve

f. Pressure regulator

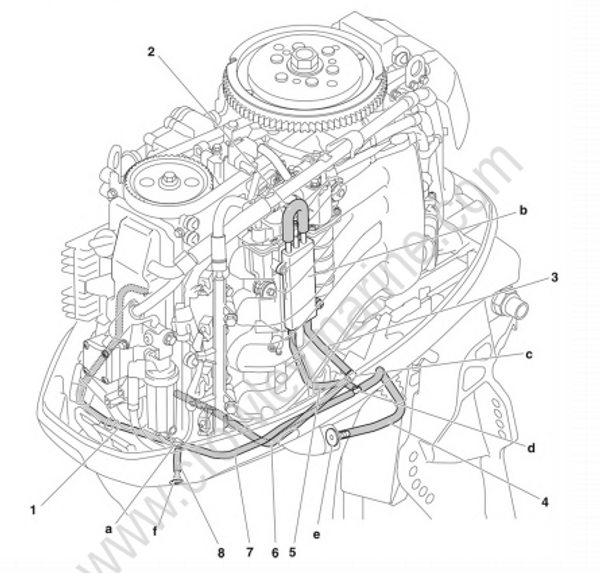

1. Cooling water hose (exhaust cover to joint)

2. Cooling water hose (fuel cooler to fuel cooler)

3. Cooling water hose (fuel cooler to joint)

4. Flushing hose (flushing hose adapter to joint)

5. Cooling water hose (joint to fuel cooler)

6. Cooling water hose (joint to exhaust guide)

7. Cooling water hose (joint to cooling water outlet)

8. Cooling water hose (joint to joint)

a. Joint

b. Fuel cooler

c. Joint

d. Joint

e. Flushing hose adapter

f. Cooling water outlet (on the bottom cowling)
