ELECTRIC START KIT P/N 5034022 INSTALLATION INSTRUCTIONS

Crowley Marine

FOR JOHNSON® OUTBOARDS 9.9/15 HP 4-STROKE
MODEL-YEAR 2003 AND NEWER ONLY

For safety reasons, this kit must be installed by an authorized Evinrude/Johnson dealer. These installation instructions contain information that can help prevent personal injury and damage to equipment. Understand the following symbols before proceeding:


Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.


Indicates a potentially hazardous situation which, if not avoided, CAN result in severe injury or death.


Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate personal injury or property damage. It also may be used to alert against unsafe practices.

TO THE OWNER

The assembly procedures outlined in this sheet should be performed by a skilled technician. If you have questions, see your DEALER. Save these instructions in your owner’s kit. This sheet contains information important to the future use and maintenance of your engine.

TO THE INSTALLER

Give this sheet to the owner. Advise the owner of any special operation or maintenance information contained in the instructions. This kit is designed for specific applicable models only. It is not recommended for units other than those for which it was sold.


CONTENTS OF KIT

Ref P/N Name of Part Qty
  5034022 ELECTRIC START KIT*
1 5030356 RECTIFIER ASSY 1
2 5030832 TUBE 1
3 5032043 CASE ASSY, FUSE 1
4 5032726 FLYWHEEL ASSY 1
5 5033155 LEAD, NEUTRAL LIMIT 1
6 5033301 SCREW, Rectifier 1
7 5030135 CLAMP, Fuse Case 1
8 5033302 SCREW, Fuse Case 1
  5034019 MOTOR ASSY, START* 1
9 5030002   BOLT 2
10 5030783   RELAY ASSY 1
11 5030995   BOLT 3
12 5030997   BOLT 1
13 5032048   BRACKET 1
14 5032308   PIN 2
15 5032310   SCREW 1
16 5032725   BRACKET, STARTER MOTOR 1
17 5033145   MOTOR, STARTER 1
  5032338     HOLDER, BRUSH-START* 1
  5032342     BOLT* 1
  5032343     ARMATURE* 2
  5032344     PINION ASSY, STOP* 1
  5032346     WASHER* 1
  5033146     PINION ASSY* 1
  5034020     SWITCH ASSY, STARTER* 1
  5030589 STARTING CABLE SET* 1
18 5032824   CLAMP, Battery 1
19 5030589   CLAMP (length: 125 mm) 1
20 5031828   NUT (14 x 1.5 x 13 mm) 1
21 5032044   SWITCH ASSY 1
22 5033148   GROMMET 1
23 5033149   CABLE ASSY, STARTER 1
24 5032683   BATTERY CABLE 1

* Not shown

IMPORTANT: Only the parts listed here are required for correct starter assembly and installation.


PRE-INSTALLATION PROCEDURES


To prevent accidental starting while servicing, twist and remove all spark plug leads.

Refer to the wiring diagram in the service manual for wire routings.

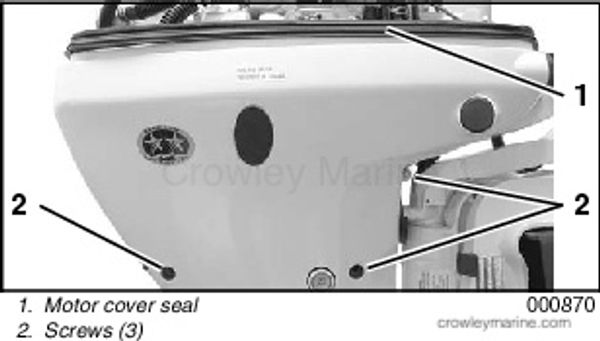

Remove lower pans by first removing motor cover, motor cover seal, and three screws.

Remove rear screw. Remove retaining clip, washer, pin and latch.

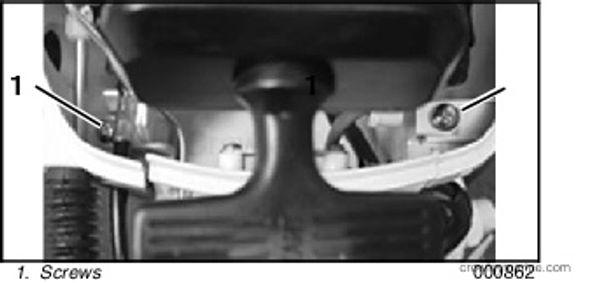

Remove both screws found inside front of motor cover pans.

Remove port side pan and set aside to prevent damage.


Removing recoil starter

Remove bolts.

Remove bolt.

Remove electrical connector from CDI unit by depressing tab and gently pulling off.




Removing flywheel

Using a flywheel holder to prevent flywheel from turning, remove nut with a socket wrench by turning counterclockwise. Remove nut and washer and set aside for later use.

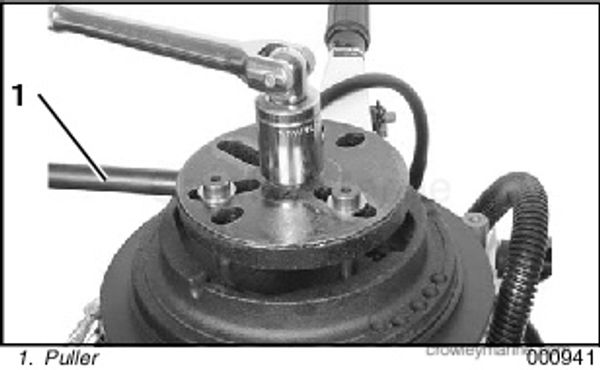

Using a suitable puller, remove flywheel and set aside.




Installing new flywheel

Ensure key is still in place in crankshaft and place new flywheel on crankshaft, aligning slot in flywheel with key.

Place washer and flywheel nut on threads of crankshaft and torque to 50.5 ft. lbs. (70 Nm).




Installing recoil starter

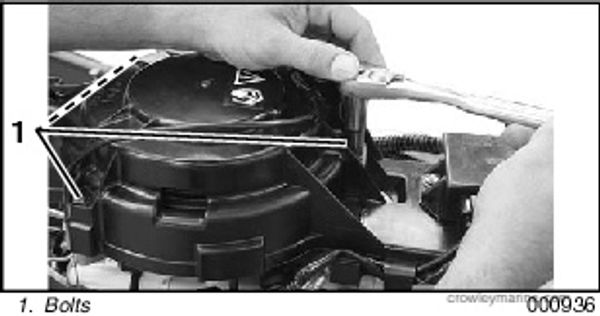

Replace recoil housing and secure with four bolts previously removed. Tighten securely.




STARTER INSTALLATION

Install rectifier as shown using screw supplied.

Install bracket into relay.

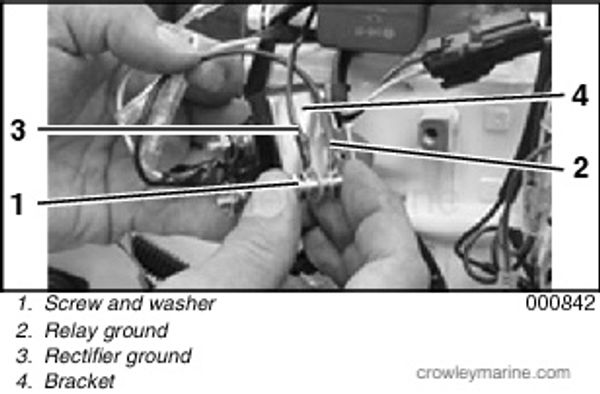

Place washer on screw and place relay ground lead terminal and rectifier ground lead terminal on screw. Insert screw through hole in bracket and start screw in threaded hole in boss on side of crankcase. Ensure bracket is squarely seated on boss and tighten screw securely.

Remove plug in front engine handle bracket.

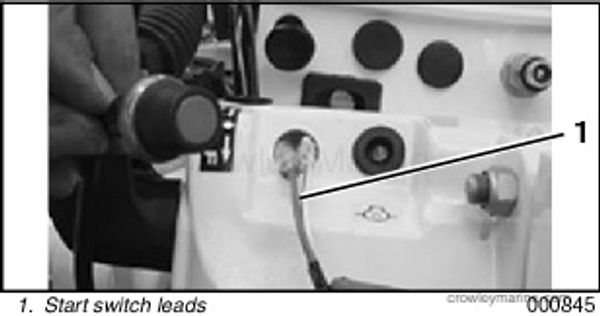

Route start switch leads through hole in bracket.

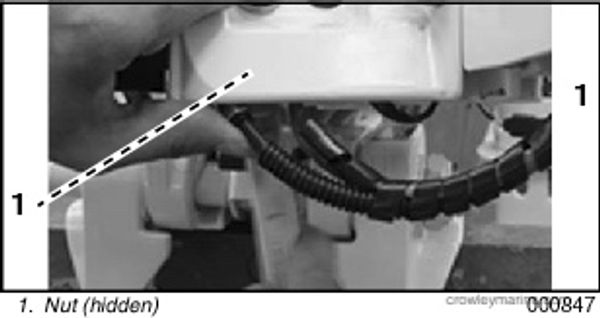

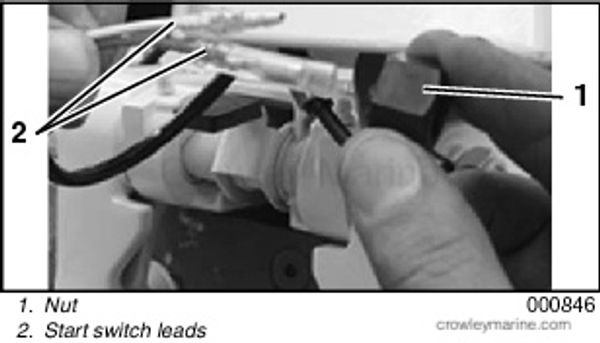

Install nut on switch leads and hand tighten.

Gently tighten nut with wrench.

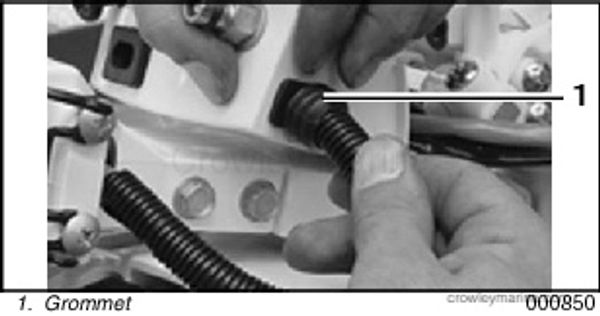

Insert leads through grommet in port side of bracket.

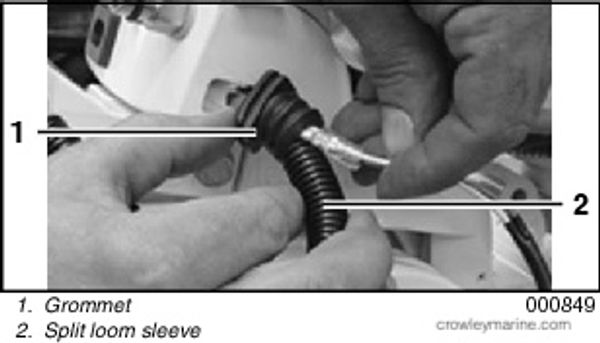

Route leads through grommet into port side of control panel. Prying grommet from panel first allows for easier installation. Slip wires inside of split loom sleeve.

Carefully reinsert grommet into side of panel.

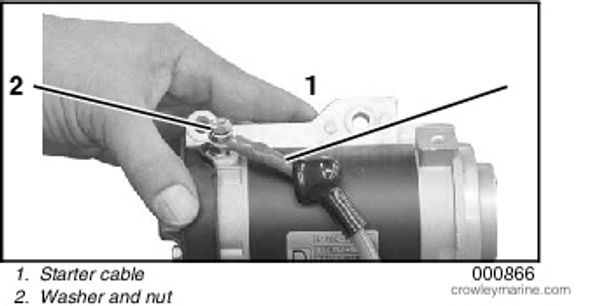

Place starter cable, washer and nut on stud, orient cable as shown and tighten nut.

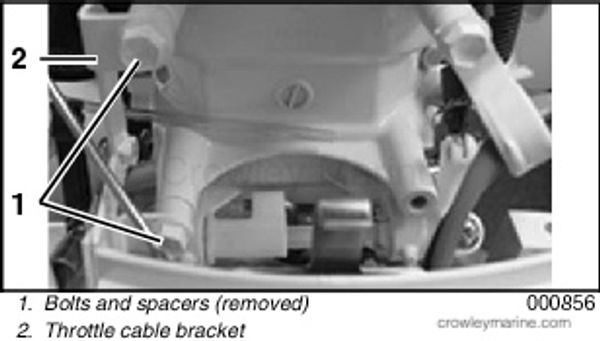

Remove the two bolts and spacers from throttle cable bracket and move bracket aside.

Remove bolt, clamp, and spacer.

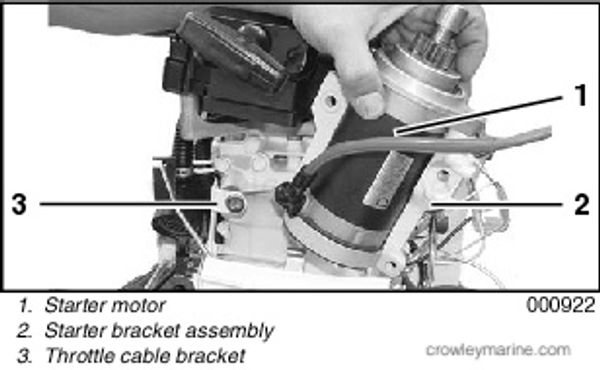

Insert starter motor and starter bracket assembly in place with throttle cable bracket in front of starter bracket assembly.

Use new supplied bolts to secure throttle cable bracket. Install bolt in top hole through throttle cable bracket and starter bracket assembly and another bolt through clamp, throttle cable bracket, and then through starter bracket. Install the longest of the bolts through clamp and spacer, then through starter bracket. Install remaining bolt through starter bracket.

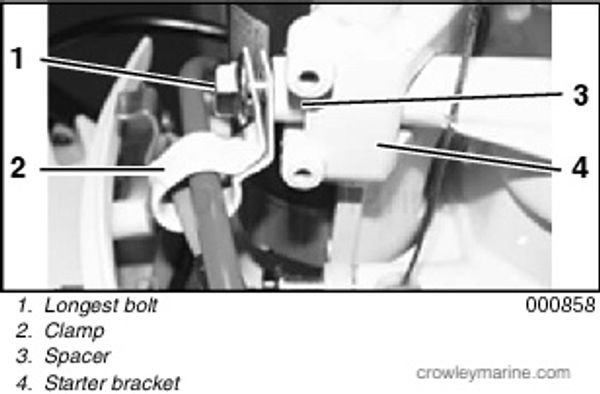

Install the longest of the bolts through clamp and spacer, then through starter bracket. Install remaining bolt through starter bracket.

IMPORTANT: Leave mounting bolts finger tight until after battery cable is routed.

Secure clamp to starter bracket using screw. Position as shown and tighten securely.

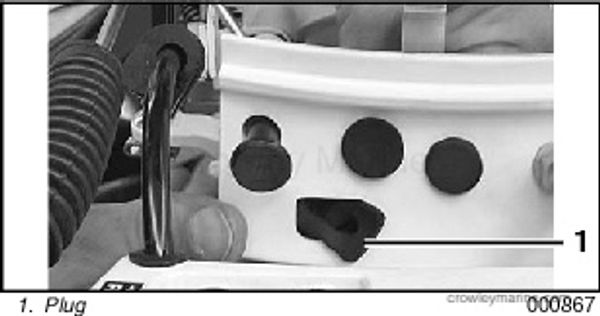

Remove rectangular plug from front of instrument panel.

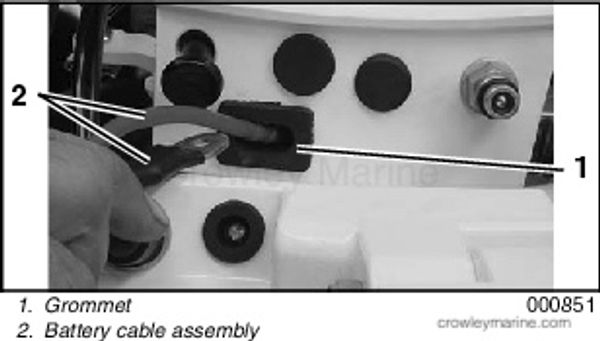

Insert rectangular grommet in hole and route battery cables through grommet.

Connect battery negative (–) cable to mounting boss on top of starter with screw and tighten securely. Bend clamp over cable to secure.

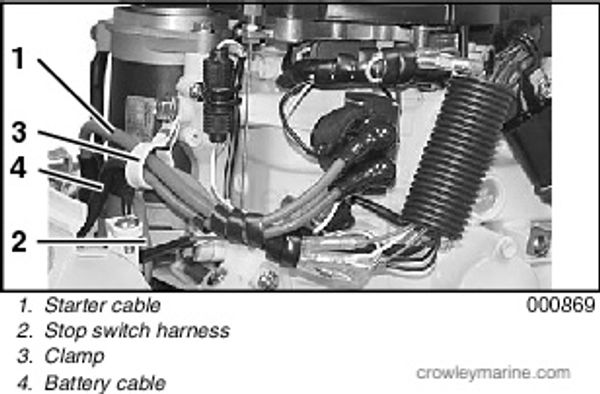

Route the starter cable and stop switch harness through the clamp along with battery cable.

Torque starter mount bolts to 12 to 14 ft. lbs.

IMPORTANT: Start switch lead assembly may be too short to route through clamp but will be secured after wiring procedures are completed.

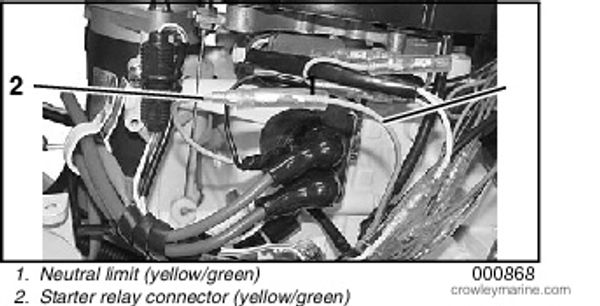

Unplug neutral limit lead (yellow/green) from connector and attach to starter relay connector (yellow/green).

Disconnect neutral limit lead (brown) from CDI unit (brown).

Connect neutral limit switch (brown) to female bullet terminal of Y-adapter (brown). Connect Yadapter terminal to CDI unit (brown). Connect the other adapter lead to start switch (brown).

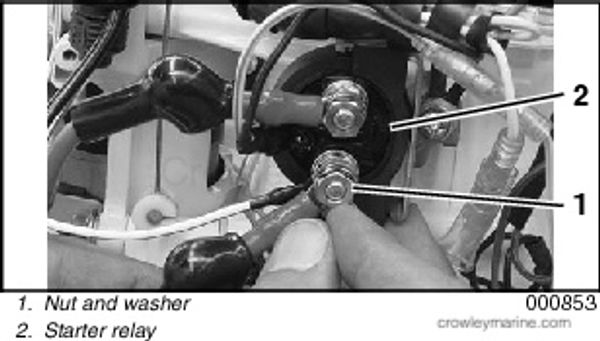

Remove nut and washer from lower stud of starter relay.

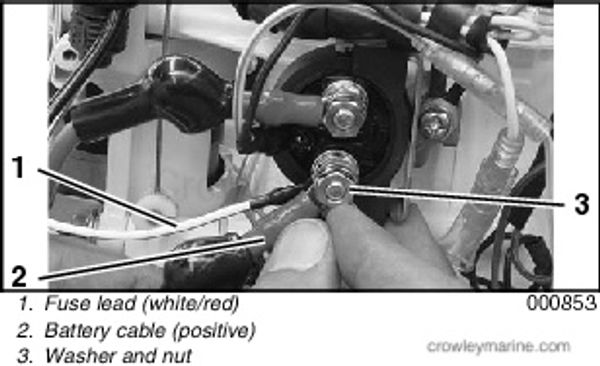

Locate fuse case assembly and place white/red ring terminal lead on lower stud then attach battery cable positive lead (red) and fasten using washer and nut. Tighten securely.

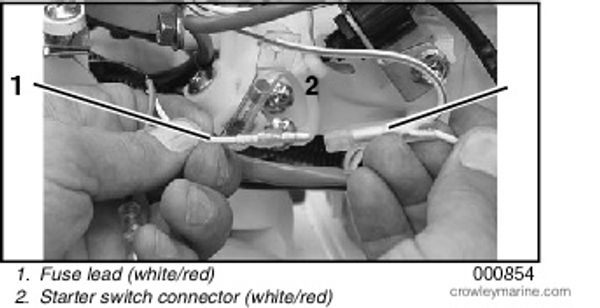

Attach fuse lead connector to white/red lead connector of starter switch.

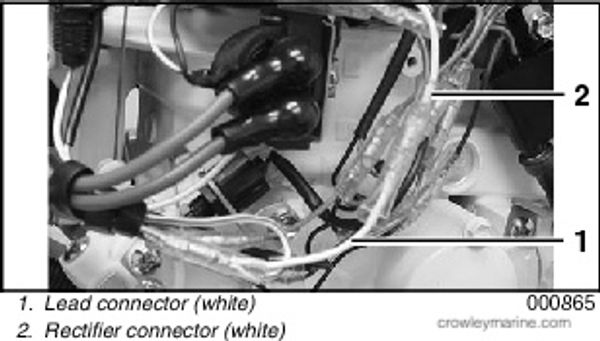

Attach white lead connector to white lead connector of rectifier assembly.

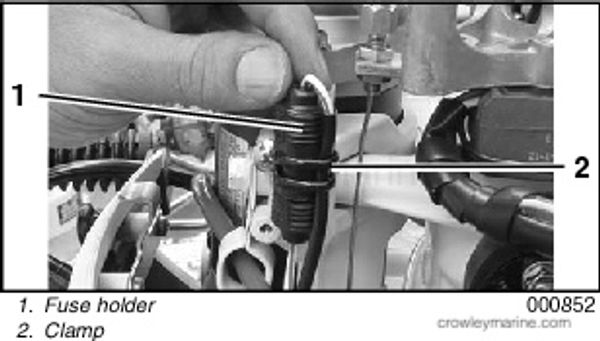

Secure fuse holder with clamp as shown.

Connect stator leads to rectifier leads. Red stator lead to red rectifier lead and yellow stator lead to yellow rectifier lead.

Using loom supplied in addition to loom removed from stator leads, wrap all wiring.


Special care must be taken to ensure all wiring is secured from contact with any moving parts. Avoid outboard damage and injury by keeping wiring away from shift lever/lockout assembly.

Replace lower engine covers and reinstall spark plug leads.

After replacing lower engine covers, run the outboard and test to ensure proper operation of electric start features such as start in-gear protection, emergency stop switch, and battery charging.


Inspect and verify correct operation of start in-gear protection. Failure to check work can lead to outboard damage or personal injury.

IMPORTANT: Advise owner to refer to the Operator’s Guide for electric start operating instructions.
