1989 Mariner Outboard 40 [ELHPTO] - 70404119D

CYLINDER BLOCK AND CRANKCASE ASSEMBLY section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

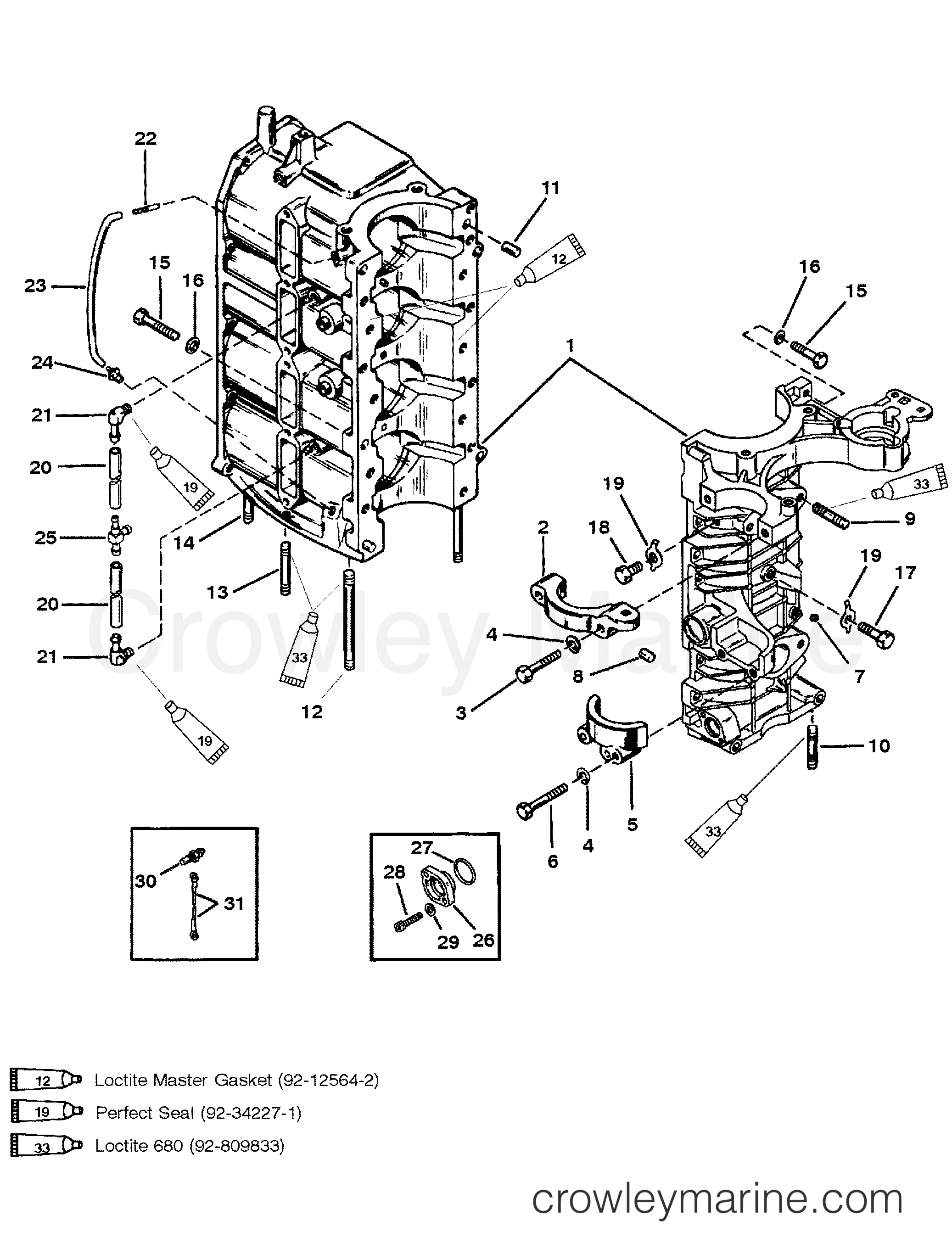

1989 Mariner Outboard 40 [ELHPTO] - 70404119D - CYLINDER BLOCK AND CRANKCASE ASSEMBLY section
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status
7 5
390721 - (.125-27) Pipe Plug
390721 ← 39072
390721 ← 39072

PLUG

PLUG
$4.99
You save 23%. $6.50
Ships Immediately
2 Items in stock
Required: 1
8 5
20032 - Pin
20032
20032

DOWEL PIN

DOWEL PIN
$2.99
$3.00
Ships Immediately
5+ Items in stock
Required: 2
12 5
87901 - STUD
87901
87901

STUD (4 IN.)

STUD (4 IN.)
$8.08
$8.08
No Longer Available
Required: 2
13 5
68166 - Stud
68166
68166

STUD (2-1/8 IN.)

STUD (2-1/8 IN.)
$37.44
You save $1.97. $39.41
Leaves in 3-5 days
Required: 2
14 5
68167 - Stud
68167
68167

STUD (2-1/2 IN.)

STUD (2-1/2 IN.)
$18.15
You save 5%. $19.10
Leaves in 3-5 days
Required: 2
15 5
31984 - Bolt (.312-18 x 1.375)
31984
31984

SCREW (1-3/8 IN.)

SCREW (1-3/8 IN.)
$0.99
You save 29%. $1.40
Ships Immediately
5+ Items in stock
Required: 3
15 5
73275 - Screw
73275
73275

SCREW (2-7/8 IN.)

SCREW (2-7/8 IN.)
$2.19
You save 5%. $2.30
Leaves in 3-5 days
Required: 2
18
19922075 - SCREW
19922075
19922075

SCREW (3/4 IN.)

SCREW (3/4 IN.)
Notes: DESIGN II W/LOCKWASHER
$5.06
$5.06
No Longer Available
Required: 2
19 5
830135 - WASHER
830135
830135

LOCKWASHER

LOCKWASHER
Notes: DESIGN II W/LOCKWASHER
$1.03
$1.03
No Longer Available
Required: 3
18
98260 - Screw
98260
98260

SCREW (5/8 IN.)

SCREW (5/8 IN.)
Notes: DESIGN I W/TAB WASHER
$0.80
$0.80
Leaves in 3-5 days
Required: 2
19 5
20091 - Center Main Bearing Locking Screw Tab Washer
20091
20091

TAB WASHER

TAB WASHER
Notes: DESIGN I W/TAB WASHER
$0.99
You save 29%. $1.40
Ships Immediately
5+ Items in stock
Required: 3
26 5
8129961 - COVER
8129961
8129961

COVER

COVER
Notes: NON OIL
$32.74
$32.74
No Longer Available
Required: 1
27 2,5
48462 - (.614 x .070) O-Ring
48462
48462

O-RING

O-RING
Notes: NON OIL
$0.99
You save 24%. $1.30
Ships Immediately
1 Items in stock
Required: 1
28 5
55515 - SCREW
55515
55515

SCREW

SCREW
Notes: NON OIL
$1.98
$1.98
No Longer Available
Required: 2
29 5
89302 - WASHER (.203 x .406 x .040)
89302
89302

WASHER

WASHER
Notes: NON OIL
$1.33
You save 5%. $1.40
Leaves in 3-5 days
Required: 2
31
88824A6 - Cable Assembly
88824A6
88824A6

CABLE ASSEMBLY

CABLE ASSEMBLY
Notes: POWERBOAT
$23.56
You save $1.24. $24.80
Leaves in 3-5 days
Required: 1
-
85491A90 - Gasket Set
85491A90
85491A90

GASKET SET

GASKET SET
$64.95
You save $3.72. $68.67
Leaves in 3-5 days
Required: 1

* Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
