1999 SportJet 120XR2 [JETPUMP] - H76SP01VD

PINION AND IMPELLER SHAFT section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

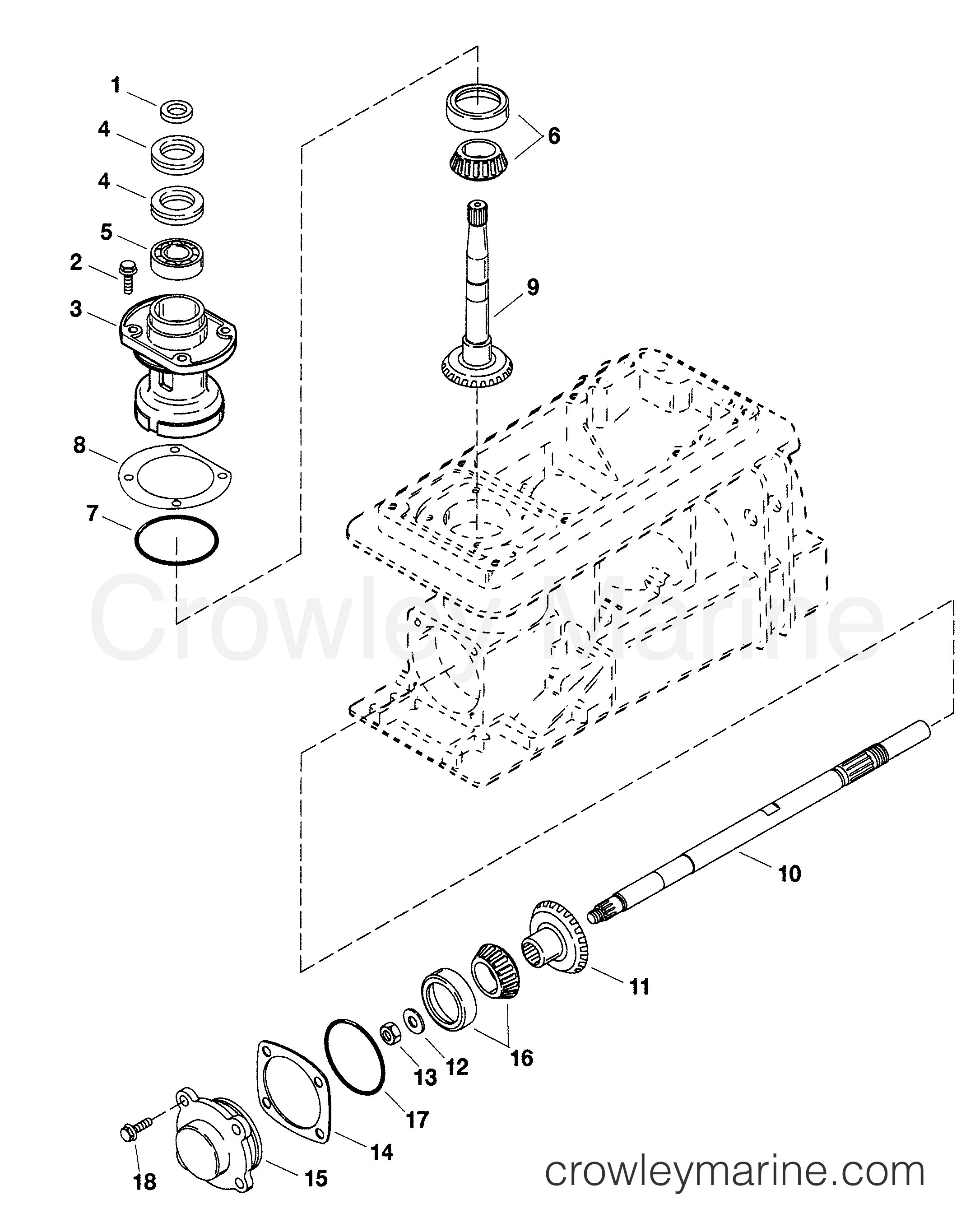

1999 SportJet 120XR2 [JETPUMP] - H76SP01VD PINION AND IMPELLER SHAFT section
Use two fingers to zoom
and move the diagram
1999 SportJet 120XR2 [JETPUMP] - H76SP01VD - PINION AND IMPELLER SHAFT section
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2 9
4010725 - Screw (M8 X 1.25 X 25)
4010725
4010725 ← 40107 25

SCREW (M8 X 25)

SCREW (M8 X 25)
$3.99
You save 5%. $4.20
Ships Immediately
4 Items in stock
Required: 4
3 9
830748A1 - Housing Assembly
830748A1
830748A1 ← 830748A 1

HOUSING ASSEMBLY-PINION SHAFT

HOUSING ASSEMBLY-PINION SHAFT
Notes: (Painted)
$242.81
You save $12.78. $255.59
Leaves in 3-5 days
Required: 1
6
38356A1 - Universal Joint Bearing Set
38356A1
38356A1 ← 38356A 1

BEARING SET

BEARING SET
Notes: (Cup And Cone)
$63.99
You save $4.26. $68.25
Ships Immediately
1 Items in stock
Required: 1
15 9
830878A1 - Cover Assembly
830878A1
830878A1 ← 830878A 1

COVER ASSEMBLY-IMPELLER SHAFT

COVER ASSEMBLY-IMPELLER SHAFT
Notes: (Painted)
$239.95
You save $14.13. $254.08
Leaves in 3-5 days
Required: 1
16
38356A1 - Universal Joint Bearing Set
38356A1
38356A1 ← 38356A 1

BEARING SET

BEARING SET
Notes: (Cup And Cone)
$63.99
You save $4.26. $68.25
Ships Immediately
1 Items in stock
Required: 1
18 9
4010725 - Screw (M8 X 1.25 X 25)
4010725
4010725 ← 40107 25

SCREW (M8 X 25)

SCREW (M8 X 25)
$3.99
You save 5%. $4.20
Ships Immediately
4 Items in stock
Required: 4

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
