1989 Evinrude Outboards 90 - TE90TLCEM

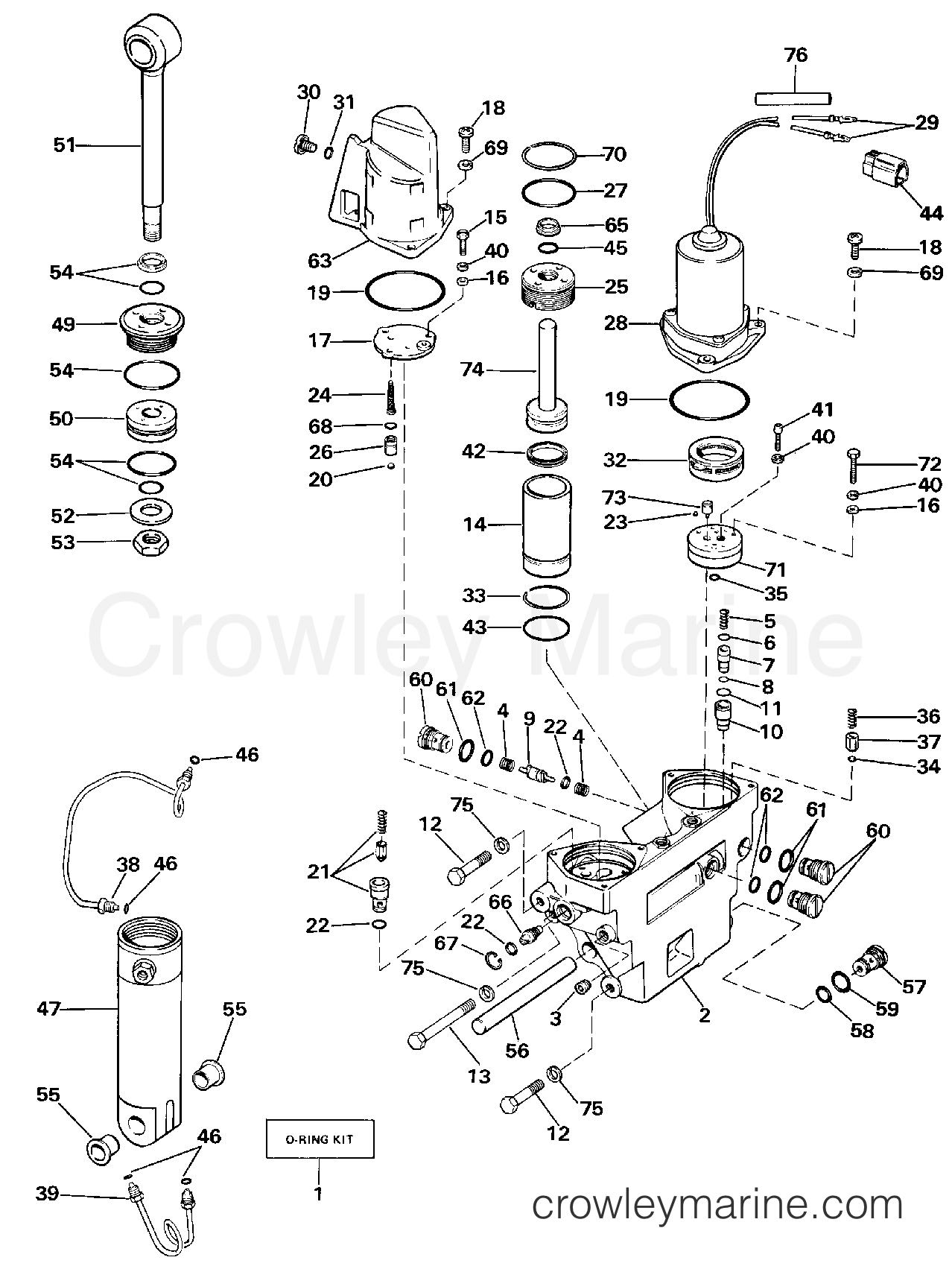

POWER TRIM/TILT HYDRAULIC ASSEMBLY section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1989 Evinrude Outboards 90 - TE90TLCEM POWER TRIM/TILT HYDRAULIC ASSEMBLY section
Use two fingers to zoom
and move the diagram
1989 Evinrude Outboards 90 - TE90TLCEM - POWER TRIM/TILT HYDRAULIC ASSEMBLY section
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0398110 - Power Trim Tilt Manifold
0398110
0398110 ← 0398110

MANIFOLD, POWER TRIM/TILT

MANIFOLD, POWER TRIM/TILT
$192.99
You save $82.01. $275.00
Ships Immediately
1 Items in stock
Required: 1
3
0321164 - Adapter Plug, port & Starboard
0321164
0321164 ← 0321164

PLUG, LARGE, MANIFOLD

PLUG, LARGE, MANIFOLD
$12.99
You save 10%. $14.39
Ships Immediately
1 Items in stock
Required: 1
4
0323846 - Spring
0323846
0323846 ← 0323846

SPRING, PISTON

SPRING, PISTON
$12.63
You save 5%. $13.29
Leaves in 3-5 days
Required: 2
5
0325863 - Spring
0325863
0325863 ← 0325863

SPRING, RELIEF VALVE

SPRING, RELIEF VALVE
$12.63
You save 5%. $13.29
Leaves in 3-5 days
Required: 1
7
0325862 - Valve Core
0325862
0325862 ← 0325862

VALVE CORE, RELIEF VALVE

VALVE CORE, RELIEF VALVE
$42.99
You save $3.90. $46.89
Ships Immediately
1 Items in stock
Required: 1
9
0323848 - Pump control Piston
0323848
0323848 ← 0323848

PISTON, PUMP CONTROL

PISTON, PUMP CONTROL
$58.99
You save $5.90. $64.89
Ships Immediately
4 Items in stock
Required: 1
11
0326425 - O-Ring
0326425
0326425 ← 0326425

O-RING, VALVE SEAT

O-RING, VALVE SEAT
$6.83
You save 5%. $7.19
Leaves in 3-5 days
Required: 1
14
0320980 - Sleeve
0320980
0320980 ← 0320980

SLEEVE, TRIM CYLINDER

SLEEVE, TRIM CYLINDER
$84.95
You save $3.74. $88.69
Leaves in 3-5 days
Required: 1
16
0300154 - Washer
0300154
0300154 ← 0300154

WASHER

WASHER
$7.31
You save 5%. $7.69
Leaves in 3-5 days
Required: 4
25
0320788 - Trim Cylinder End Cap
0320788
0320788 ← 0320788

END CAP, TRIM CYLINDER

END CAP, TRIM CYLINDER
$99.95
You save $5.44. $105.39
Leaves in 3-5 days
Required: 2
29
0511657 - Ring Terminal
0511657
0511657 ← 0511657

TERMINAL

TERMINAL
$1.99
You save 23%. $2.59
Ships Immediately
1 Items in stock
Required: 2
0398606
0398606 - Brush & Seal Kit
0398606
0398606 ← 0398606

BRUSH & SEAL KIT

BRUSH & SEAL KIT
Notes: Not Shown 3 in. (76mm) Diameter Trim Motor, "S" Stamp On End Cap
$87.99
You save $37.01. $125.00
Ships Immediately
3 Items in stock
Required: 1
0583522
0583522 - Brush & Seal Assembly
0583522
0583522 ← 0583522

BRUSH & SEAL KIT

BRUSH & SEAL KIT
Notes: Not Shown 2.4 in. (61mm) Diameter Trim Motor, "S" Stamp on End Cap
$119.99
You save $52.10. $172.09
Ships Immediately
1 Items in stock
Required: 1
30
0321284 - Reservoir Plug
0321284
0321284 ← 0321284

PLUG, RESERVOIR

PLUG, RESERVOIR
$29.95
$30.79
Leaves in 3-5 days
Required: 1
44
0309437 - Terminal
0309437
0309437 ← 0309437

SLIDE ON TERMINAL

SLIDE ON TERMINAL
$3.98
You save 5%. $4.19
Leaves in 3-5 days
Required: 2
45
0204038 - Ring Terminal
0204038
0204038 ← 0204038

RING TERMINAL

RING TERMINAL
$3.41
You save 5%. $3.59
Leaves in 6-8 days
Required: 1
46
0390760 - Lead Assembly
0390760
0390760 ← 0390760

LEAD ASSEMBLY.

LEAD ASSEMBLY.
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
49
0327166 - Ring Terminal
0327166
0327166 ← 0327166

TERMINAL

TERMINAL
$1.99
You save 5%. $2.09
Leaves in 3-5 days
Required: 4
50
0511990 - 3 Pin Connector
0511990
0511990 ← 0511990

PLUG

PLUG
$12.72
You save 5%. $13.39
Leaves in 3-5 days
Required: 1
56
0323763 - Grommet
0323763
0323763 ← 0323763

GROMMET, LOWER

GROMMET, LOWER
$13.30
You save 5%. $14.00
Leaves in 6-8 days
Required: 1
57
0389267 - Lever Assembly
0389267
0389267 ← 0389267

FRICTION ADJUSTMENT LEVER

FRICTION ADJUSTMENT LEVER
$19.99
You save $10.01. $30.00
Ships Immediately
1 Items in stock
Required: 1
60
0318277 - Screw
0318277
0318277 ← 0318277

SCREW

SCREW
$7.78
You save 5%. $8.19
Leaves in 3-5 days
Required: 3
63
0322012 - Separator
0322012
0322012 ← 0322012

SEPARATOR, LEVERS

SEPARATOR, LEVERS
$17.10
You save 5%. $18.00
Leaves in 6-8 days
Required: 1
68
0306396 - Lockwasher
0306396
0306396 ← 0306396

LOCKWASHER, CONTROL TO BOAT

LOCKWASHER, CONTROL TO BOAT
Notes: Also Available in Installation Hardware Kit Part No. 391773
$9.99
You save 19%. $12.29
Ships Immediately
5+ Items in stock
Required: 2
72
0825886 - Sending unit Terminal
0825886
0825886 ← 0825886

TERMINAL

TERMINAL
Notes: Models With Power Trim and Tilt
$8.26
You save 5%. $8.69
Leaves in 6-8 days
Required: 3
74
0205042 - Screw
0205042
0205042 ← 0205042

SCREW, CLAMP

SCREW, CLAMP
Notes: Models With Power Trim and Tilt
$5.99
You save 10%. $6.69
Ships Immediately
4 Items in stock
Required: 1
75
0322389 - Clamp
0322389
0322389 ← 0322389

CLAMP

CLAMP
Notes: Models With Power Trim and Tilt
$6.99
You save 15%. $8.19
Ships Immediately
4 Items in stock
Required: 1
76
0316245 - Clamp
0316245
0316245 ← 0316245

CLAMP

CLAMP
Notes: Also Available in Installation Hardware Kit Part No. 391773 Models With Power Trim and Tilt
$2.99
You save 35%. $4.59
Ships Immediately
3 Items in stock
Required: 1
78
0328169 - Nut
0328169
0328169 ← 0328169

NUT

NUT
$9.95
You save 11%. $11.19
Leaves in 3-5 days
Required: 1
79
0328170 - Switch Nut Guard
0328170
0328170 ← 0328170

GUARD

GUARD
$8.54
You save 5%. $8.99
Leaves in 6-8 days
Required: 1
80
0305009 - Screw
0305009
0305009 ← 0305009

SCREW

SCREW
Notes: Also Available in Installation Hardware Kit Part No. 391773 Models With Power Trim and Tilt
$4.59
$4.59
Leaves in 3-5 days
Required: 1
83
0331430 - Screw
0331430
0331430 ← 0331430

SCREW, LATCH

SCREW, LATCH
$7.78
You save 5%. $8.19
Leaves in 3-5 days
Required: 2
84
0331429 - Nut
0331429
0331429 ← 0331429

NUT, FAST IDLE LEVER

NUT, FAST IDLE LEVER
$7.78
You save 5%. $8.19
Leaves in 3-5 days
Required: 1
85
0330868 - Keeper Plate
0330868
0330868 ← 0330868

KEEPER PLATE

KEEPER PLATE
$11.68
You save 5%. $12.29
Leaves in 6-8 days
Required: 1
86
0324064 - Screw
0324064
0324064 ← 0324064

SCREW, PLATE

SCREW, PLATE
$4.59
$4.59
Leaves in 6-8 days
Required: 1
91
0512423 - Battery cables Sleeve
0512423
0512423 ← 0512423

SLEEVE

SLEEVE
Notes: Models With Power Trim and Tilt
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
91
0327120 - Grommet
0327120
0327120 ← 0327120

GROMMET

GROMMET
Notes: Models Without Power Trim and Tilt
$5.50
$5.50
Leaves in 6-8 days
Required: 1
