1969 OMC Stern Drive 210 - TUFM-69B

INTERMEDIATE HOUSING GROUP 80,120,155,210 HP section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

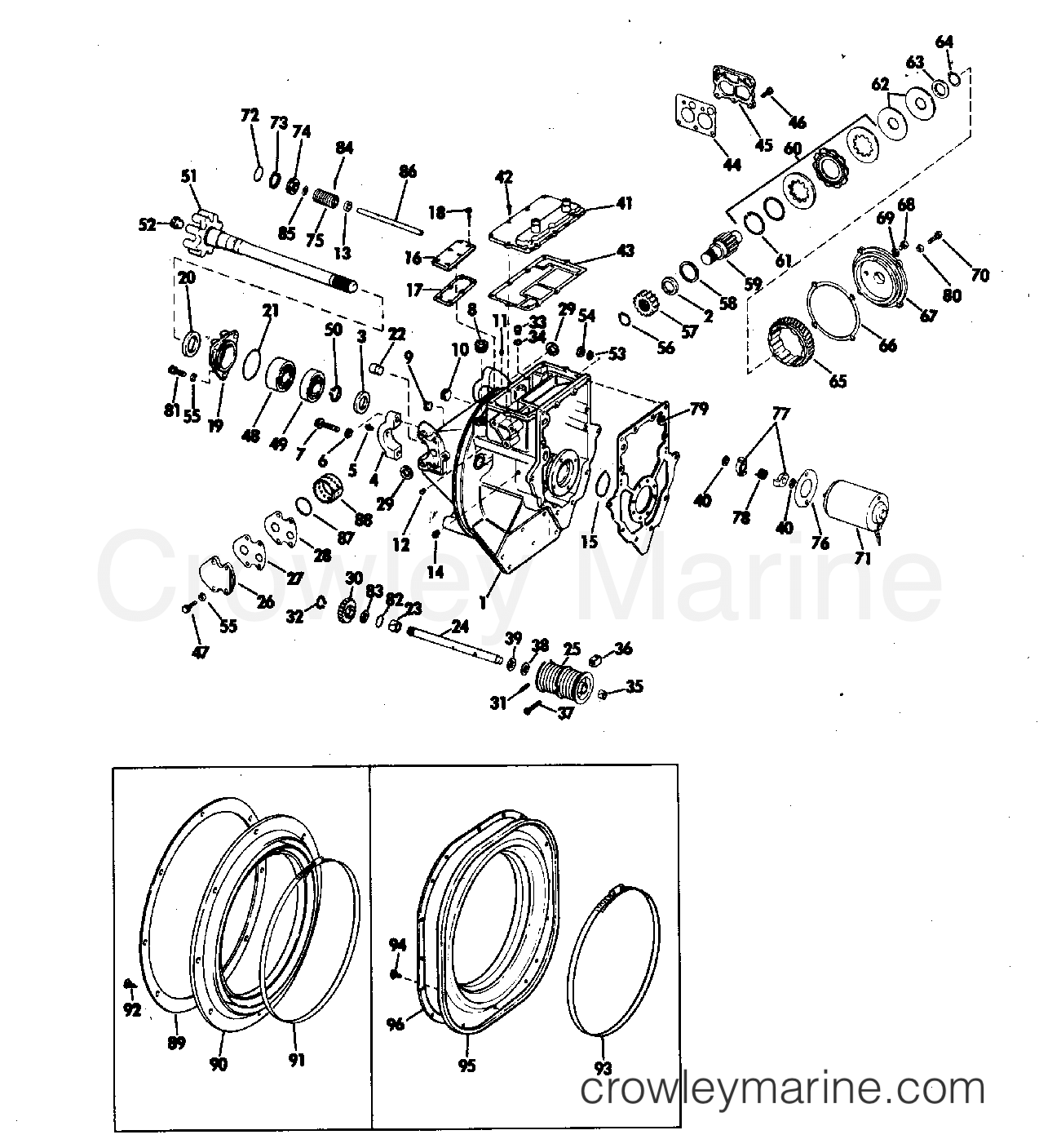

1969 OMC Stern Drive 210 - TUFM-69B INTERMEDIATE HOUSING GROUP 80,120,155,210 HP section
Use two fingers to zoom
and move the diagram
1969 OMC Stern Drive 210 - TUFM-69B - INTERMEDIATE HOUSING GROUP 80,120,155,210 HP section
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0383148 - Pivot Cap Assembly
0383148
0383148 ← 0383148

PIVOT CAP ASSEMBLY

PIVOT CAP ASSEMBLY
$33.99
You save $14.01. $48.00
Ships Immediately
2 Items in stock
Required: 2
7
0308745 - Pivot Cap Screw
0308745
0308745 ← 0308745

SCREW,PIVOT CAP

SCREW,PIVOT CAP
Notes: FOR 80 HP MODEL ONLY
$.99
You save 34%. $1.50
Ships Immediately
5+ Items in stock
Required: 4
8
0305124 - Plug
0305124
0305124 ← 0305124

PLUG

PLUG
$2.99
You save 25%. $4.00
Ships Immediately
1 Items in stock
Required: 1
9
0314273 - Plug
0314273
0314273 ← 0314273

PLUG

PLUG
$9.98
You save 5%. $10.50
Leaves in 6-8 days
Required: 1
10

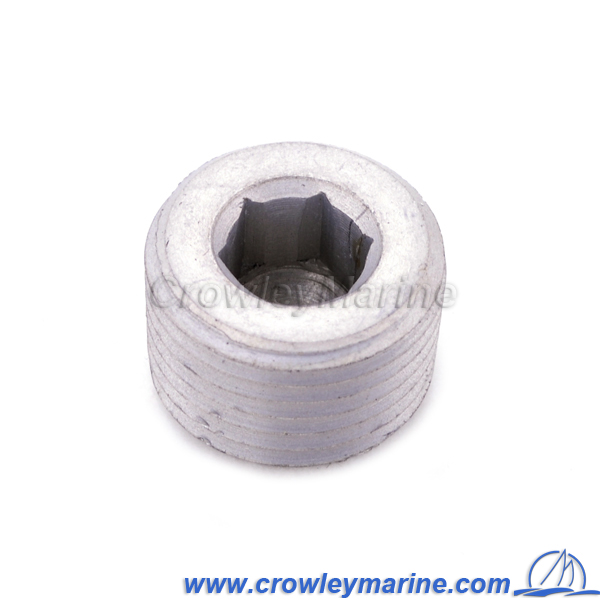

0908276 - Intake Manifold
0908276 ← 0309961
0908276

PLUG

PLUG
$14.99
You save 15%. $17.69
Ships Immediately
3 Items in stock
Required: 1
11
0308897 - Plug
0308897
0308897 ← 0308897

PLUG

PLUG
$1.90
You save 5%. $2.00
Leaves in 6-8 days
Required: 1
16
0313247 - Oil Reservoir Cover
0313247
0313247 ← 0313247

COVER,OIL RESERVOIR

COVER,OIL RESERVOIR
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
17
0313246 - Gasket
0313246
0313246 ← 0313246

GASKET,COVER

GASKET,COVER
$4.59
$4.59
Leaves in 3-5 days
Required: 1
18
0307195 - Screw
0307195
0307195 ← 0307195

SCREW,COVER TO HOUSING

SCREW,COVER TO HOUSING
$.99
You save 18%. $1.20
Ships Immediately
5+ Items in stock
Required: 6
0382773
0382773 - Retainer & Seal Assembly
0382773
0382773 ← 0382773

RETAINER & SEAL ASSEMBLY

RETAINER & SEAL ASSEMBLY
Notes: Not Shown
$33.99
You save $14.01. $48.00
Ships Immediately
1 Items in stock
Required: 1
19
0313242 - Retainer
0313242
0313242 ← 0313242

RETAINER,SEAL

RETAINER,SEAL
$58.99
You save $25.70. $84.69
Ships Immediately
4 Items in stock
Required: 1
22
0310964 - Plug
0310964
0310964 ← 0310964

PLUG

PLUG
Notes: MECHANICAL STEERING MODELS
$9.99
You save 38%. $16.00
Ships Immediately
4 Items in stock
Required: 1
23
0308532 - Bushing
0308532
0308532 ← 0308532

BUSHING,REAR

BUSHING,REAR
Notes: ROPE STEERING MODELS
$8.95
You save 12%. $10.19
Ships Immediately
5+ Items in stock
Required: 1
24
0313237 - Steering Shaft
0313237
0313237 ← 0313237

SHAFT,STEERING

SHAFT,STEERING
Notes: ROPE STEERING MODELS
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
25
0313322 - Steering Pulley
0313322
0313322 ← 0313322

PULLEY,STEERING

PULLEY,STEERING
Notes: ROPE STEERING MODELS
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
26
0313264 - Cover
0313264
0313264 ← 0313264

COVER,PIVOT CAP

COVER,PIVOT CAP
$19.95
$20.00
Leaves in 6-8 days
Required: 2
28
0313245 - Cover Plate
0313245
0313245 ← 0313245

PLATE,COVER

PLATE,COVER
$24.99
You save 11%. $28.00
Ships Immediately
2 Items in stock
Required: 2
30
0908461 - Shaft Gear
0908461 ← 0313239
0908461

GEAR

GEAR
Notes: ROPE STEERING MODELS
$154.99
You save $16.01. $171.00
Ships Immediately
2 Items in stock
Required: 1
31
0313281 - Spirol Pin
0313281
0313281 ← 0313281

SPIROL PIN

SPIROL PIN
Notes: ROPE STEERING MODELS
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
33

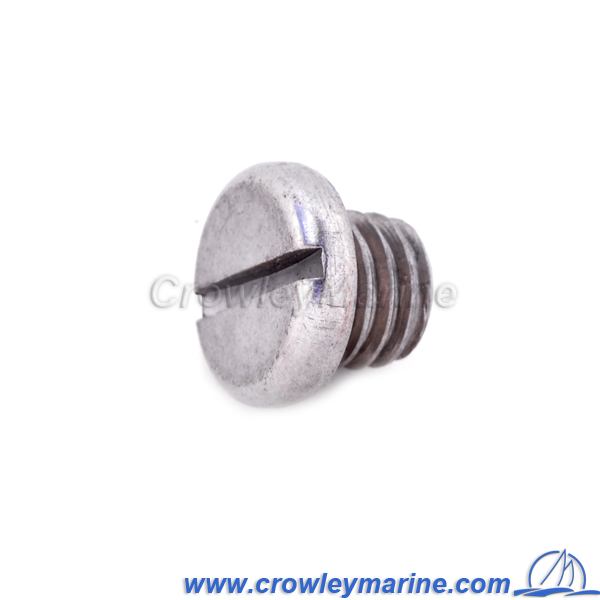

0313224 - Oil Fill Screw Plug
0313224
0313224 ← 0313224

SCREW PLUG,OIL FILL

SCREW PLUG,OIL FILL
$22.80
You save $1.20. $24.00
Leaves in 6-8 days
Required: 1
35
0308693 - Steering Shaft Bushing, Rear
0308693
0308693 ← 0308693

BUSHING,FRONT

BUSHING,FRONT
Notes: ROPE STEERING MODELS
$4.95
$5.00
Leaves in 6-8 days
Required: 1
36
0308572 - Rope Clamp
0308572
0308572 ← 0308572

CLAMP,ROPE

CLAMP,ROPE
Notes: ROPE STEERING MODELS
$3.99
You save 34%. $6.00
Ships Immediately
2 Items in stock
Required: 1
37
0308695 - Pin
0308695
0308695 ← 0308695

SCREW,CLAMP

SCREW,CLAMP
Notes: ROPE STEERING MODELS
$.99
You save 34%. $1.50
Ships Immediately
5+ Items in stock
Required: 1
38
0308879 - Shim
0308879
0308879 ← 0308879

SHIM

SHIM
Notes: ROPE STEERING MODELS
$5.95
$6.00
Leaves in 6-8 days
Required: 0
39
0309603 - Washer
0309603
0309603 ← 0309603

WASHER

WASHER
Notes: ROPE STEERING MODELS
$1.14
You save 5%. $1.20
Leaves in 6-8 days
Required: 1
41
0310804 - OBSOLETE BRP PART
0310804
0310804 ← 0310804

WATER COVER

WATER COVER
$17.99
You save 28%. $25.00
Ships Immediately
1 Items in stock
Required: 1
42
0307195 - Screw
0307195
0307195 ← 0307195

SCREW,WATER COVER

SCREW,WATER COVER
$.99
You save 18%. $1.20
Ships Immediately
5+ Items in stock
Required: 9
43
0308452 - Water Cover Gasket
0308452
0308452 ← 0308452

GASKET,WATER COVER

GASKET,WATER COVER
$6.65
You save 5%. $7.00
Leaves in 6-8 days
Required: 1
45
0310684 - Cover
0310684
0310684 ← 0310684

COVER

COVER
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 1
46
0306644 - Screw
0306644
0306644 ← 0306644

SCREW,COVER

SCREW,COVER
$8.26
You save 5%. $8.69
Leaves in 3-5 days
Required: 5
48
0379593 - Outer Bearing Assembly
0379593
0379593 ← 0379593

BEARING ASSEMBLY,OUTER

BEARING ASSEMBLY,OUTER
$199.95
You save $10.05. $210.00
Leaves in 6-8 days
Required: 1
50
0308629 - Retaining Ring
0308629
0308629 ← 0308629

RETAINING RING

RETAINING RING
$11.58
You save 5%. $12.19
Leaves in 6-8 days
Required: 1
53
0306453 - Washer
0306453
0306453 ← 0306453

WASHER,STUD

WASHER,STUD
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 12
54
0313457 - Support Screw Nut
0313457
0313457 ← 0313457

NUT,STUD

NUT,STUD
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 12
57
0308453 - Gear
0308453
0308453 ← 0308453

GEAR

GEAR
$79.99
You save $33.90. $113.89
Ships Immediately
1 Items in stock
Required: 1
59
0308807 - Tilt Clutch Shaft
0308807
0308807 ← 0308807

SHAFT,TILT CLUTCH

SHAFT,TILT CLUTCH
Notes: FOR 80 HP MODEL ONLY
$97.16
You save $5.11. $102.27
Leaves in 6-8 days
Required: 1
62
0308809 - Spring Washer
0308809
0308809 ← 0308809

BELLEVILLE SPRING

BELLEVILLE SPRING
$14.95
You save 10%. $16.63
Leaves in 6-8 days
Required: 2
65
0308806 - Worm Wheel
0308806
0308806 ← 0308806

WORM WHEEL

WORM WHEEL
$204.95
You save $11.74. $216.69
Leaves in 6-8 days
Required: 1
71
0382138 - Tilt Motor Assembly
0382138
0382138 ← 0382138

TILT MOTOR

TILT MOTOR
Notes: SEE TILT MOTOR GROUP PRESTOLITE MODEL ETK-4102,80,120,155,210 HP FOR DETAIL PARTS
$243.10
You save $12.79. $255.89
Leaves in 3-5 days
Required: 1
74
0308631 - Retainer
0308631
0308631 ← 0308631

RETAINER BEARING

RETAINER BEARING
$54.99
You save $5.01. $60.00
Ships Immediately
3 Items in stock
Required: 1
81

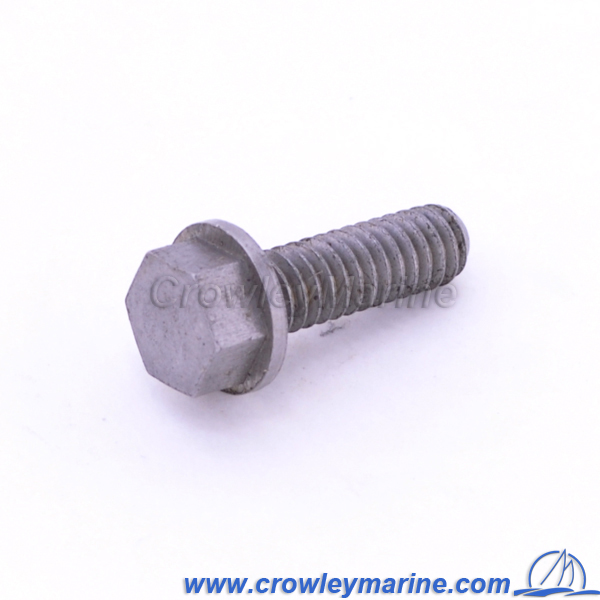

0308707 - Screw
0308707
0308707 ← 0308707

SCREW,SEAL RETAINER

SCREW,SEAL RETAINER
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 3
83
0308697 - Washer
0308697
0308697 ← 0308697

WASHER

WASHER
Notes: ROPE STEERING MODELS
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
95
0313080 - Transom Seal
0313080
0313080 ← 0313080

SEAL,TRANSOM

SEAL,TRANSOM
$149.95
You save $8.64. $158.59
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
